Repair Procedures: Removal: Headlamps

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the front auxiliary lamp.

    (Refer to Lighting System - "FRONT AUXILIARY LAMP ")

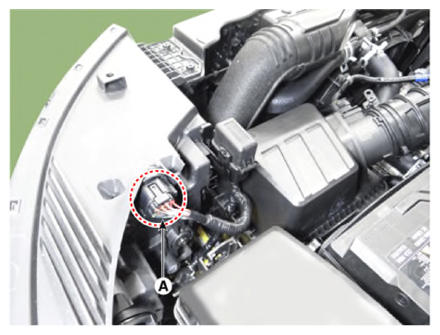

  3. Disconnect the headlamp connector (A).
    G13486800Courtesy of KIA MOTORS AMERICA, INC.

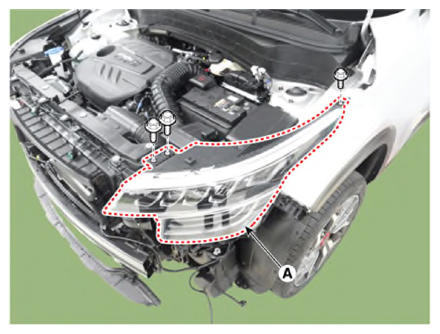

  4. Remove the headlamp (A) after loosening the mounting bolts.
    G13486801Courtesy of KIA MOTORS AMERICA, INC.

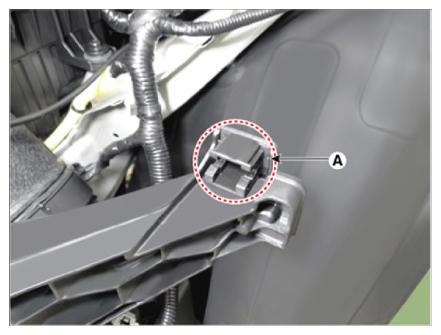

    NOTE: Be careful not to damage the retaining clip (A).
    G13486802Courtesy of KIA MOTORS AMERICA, INC.
