Headlamp Aiming Point

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

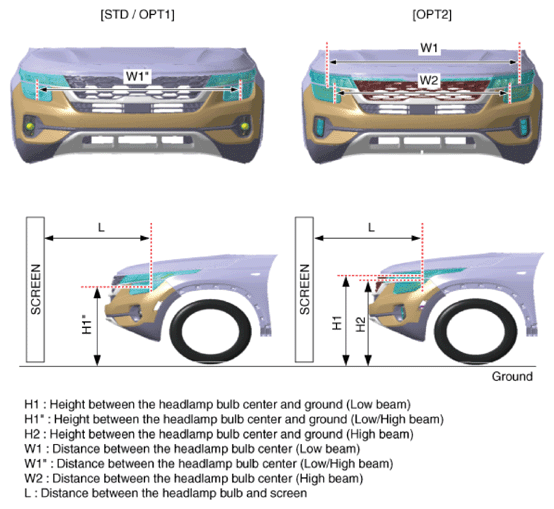

[STD/OPT1]

Vehicle condition	H1"	W1"	Note
Empty	763 (30.0393)	1438 (56.6141)	ALL DIM in mm (in.)
1 person on board	758 (29.8425)	1438 (56.6141)	ALL DIM in mm (in.)

[OPT2]

Vehicle condition	H1	H2	W1	W2	Note
Empty	845 (33.2677)	835 (32.8740)	1326 (52.2047)	1119 (44.0551)	ALL DIM in mm (in.)
1 person on board	840 (33.0708)	830 (32.6771)	1326 (52.2047)	1119 (44.0551)	ALL DIM in mm (in.)

If headlamp leveling device is equipped, adjust the headlamp leveling device switch with 0 positions.
Turn the low beam on without driver aboard.

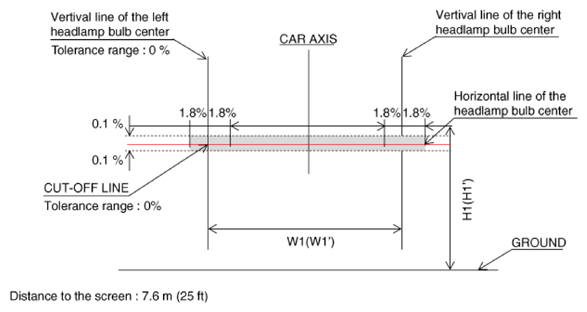

The low beam cut-off line should be projected as shown in the figure.
