Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

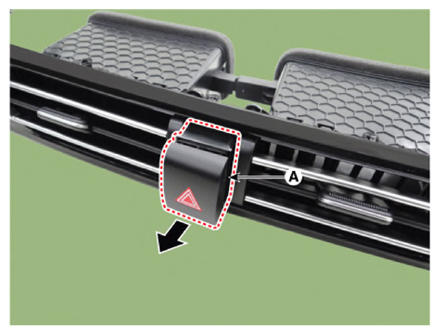

  3. Remove the hazard lamp switch (A) by pushing the holders in the direction of arrow.
G13486790Courtesy of KIA MOTORS AMERICA, INC.
G13486791Courtesy of KIA MOTORS AMERICA, INC.
