Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

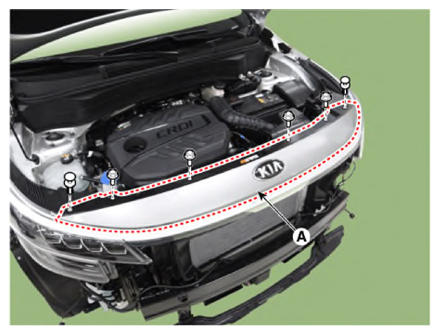

  3. Remove the radiator grille upper cover (A) after loosening the mounting bolts and fasteners.
    G13486871Courtesy of KIA MOTORS AMERICA, INC.

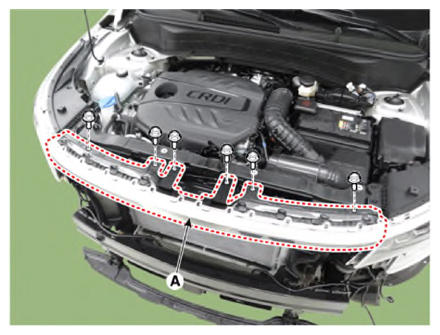

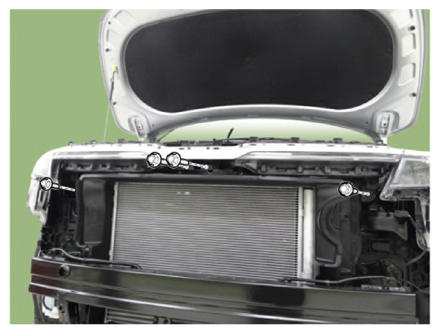

  4. Remove the front auxiliary lamp (A) after loosening the mounting bolts.
    G13486872Courtesy of KIA MOTORS AMERICA, INC.
    G13486873Courtesy of KIA MOTORS AMERICA, INC.

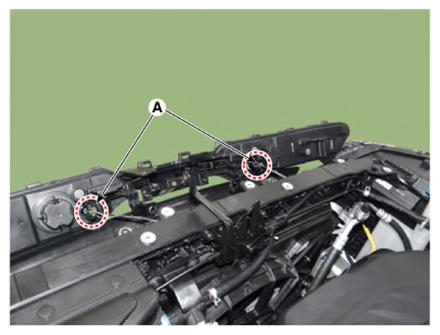

  5. Disconnect the front auxiliary lamp connectors (A).
    G13486874Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the front auxiliary lamp.

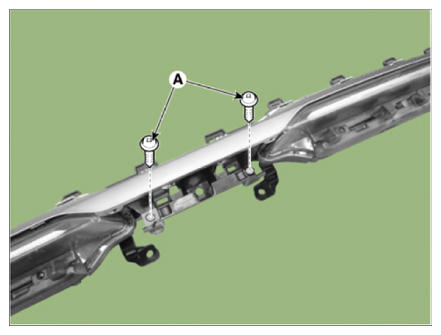

    1. Loosen the front auxiliary lamp (A) mounting screws.

      [Center]

      G13486875Courtesy of KIA MOTORS AMERICA, INC.

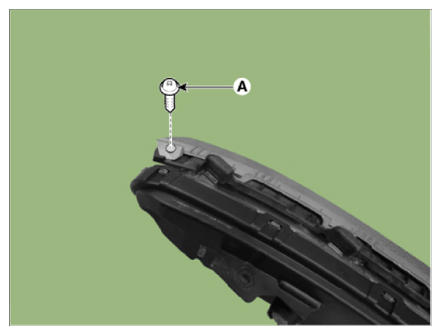

      [LH]

      G13486876Courtesy of KIA MOTORS AMERICA, INC.

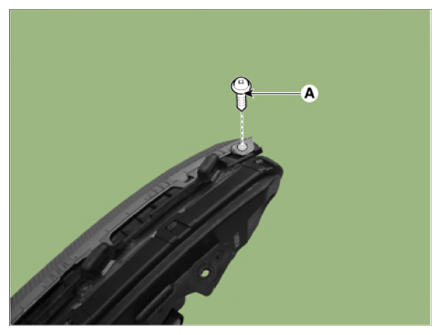

      [RH]

      G13486877Courtesy of KIA MOTORS AMERICA, INC.

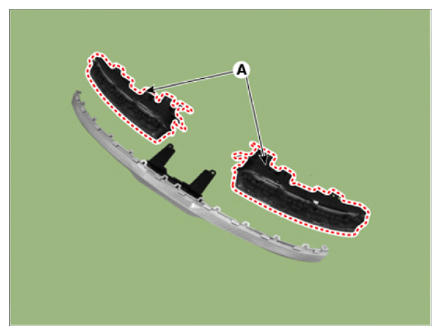

    2. Remove the front auxiliary lamp (A) from the front auxiliary lamp assembly.
      G13486878Courtesy of KIA MOTORS AMERICA, INC.
