Fog Lamp Aiming Point
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

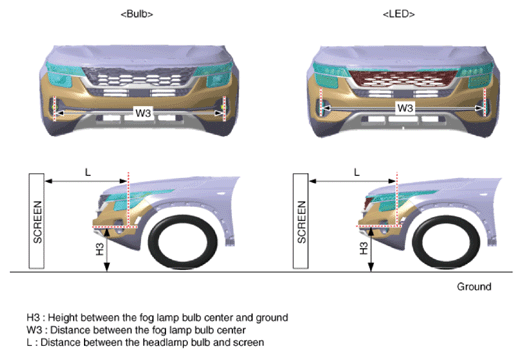

| Vehicle condition | Type | H3 | W3 | Note |
|---|---|---|---|---|
| Empty | Bulb | 490 (19.2913) | 1522 (59.9212) | ALL DIM in mm (in.) |
| LED | 491 (19.3307) | 1515 (59.6456) | ||
| 1 person on board | Bulb | 485 (19.0944) | 1522 (59.9212) | ALL DIM in mm (in.) |
| LED | 486 (19.1338) | 1515 (59.6456) |
- Turn the front fog lamp on without the driver aboard.

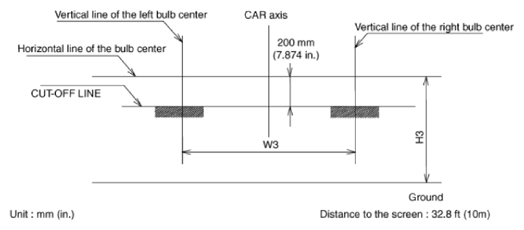

- The cut-off line should be projected in the allowable range (shaded region).
