Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery (-) terminal.
  2. Remove the driver airbag module.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE ")

  3. Turn the steering wheel so that the front wheels are facing straight ahead.

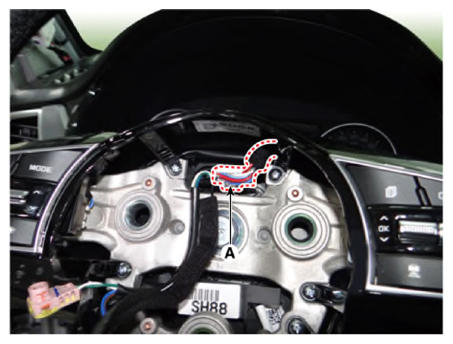

  4. Disconnect the steering wheel connector (A).
    G13481436Courtesy of KIA MOTORS AMERICA, INC.

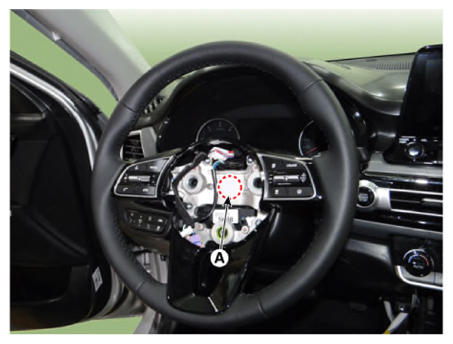

  5. Loosen the bolt (A) and then remove the steering wheel.

    Tightening torque:

    44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

    G13481437Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the steering wheel, do not impact it by hammering as it may damage the steering column.
    • Do not reuse the steering bolt.

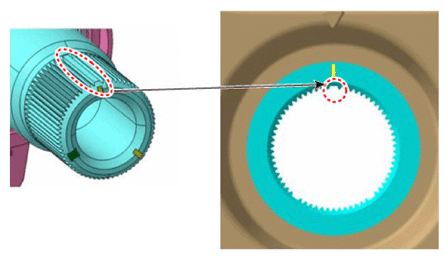

    • When assembling, match the gear teeth as the below illustration.
      G13481438Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
