Tailgate Lower Trim

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the tailgate upper & side trim.
(Refer to Tailgate - "TAILGATE TRIM ")

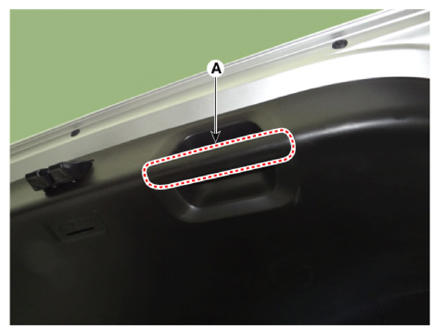

Using a screwdriver or remover, remove the tailgate handle cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

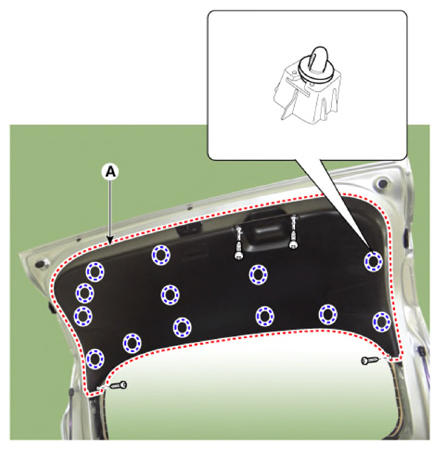

After loosening the mounting screws and fastener remove the tailgate lower trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
