Lower Arm Ball Joint

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front lower arm.

    (Refer to Suspension System - "FRONT LOWER ARM ")

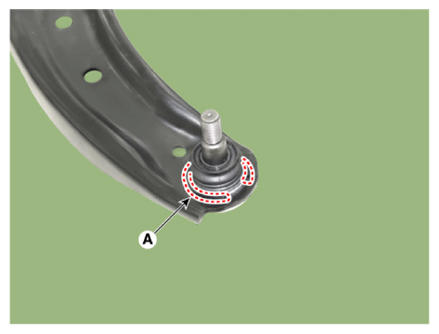

  2. Remove the circlip (A) from the lower arm ball joint.
    NOTE: Do not reuse the circlip.
    G13481271Courtesy of KIA MOTORS AMERICA, INC.

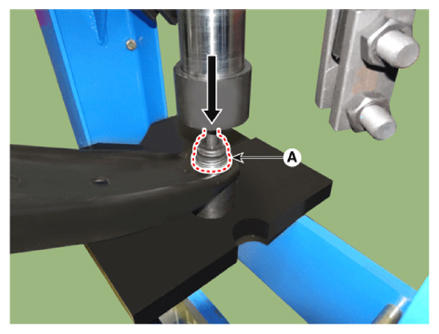

  3. Remove the ball joint (A) from the lower arm by using a press.
    CAUTION:
    • Apply pressure after set the Ball Joint center accurately.
    • Ware the protection glasses to protect eyes.
    • Make sure there is none of contact between hand or body and operating cylinder load area.
    G13481272Courtesy of KIA MOTORS AMERICA, INC.

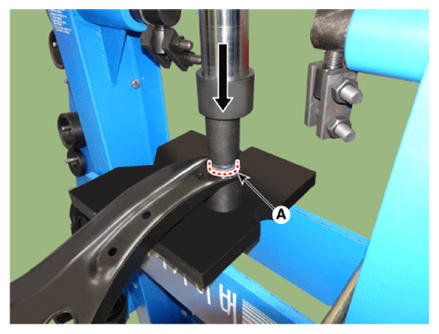

  4. Install the new ball joint (A) by using a press.
    NOTE:
    • Be careful not to damage the lower arm ball joint dust cover when you assemble.
    • Be careful of transforming of the lower arm when the ball joint is installed.
    G13481273Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the lower arm ball joint circlip.
