Vehicle S/W Management
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to "Data Link Connector (DLC)".

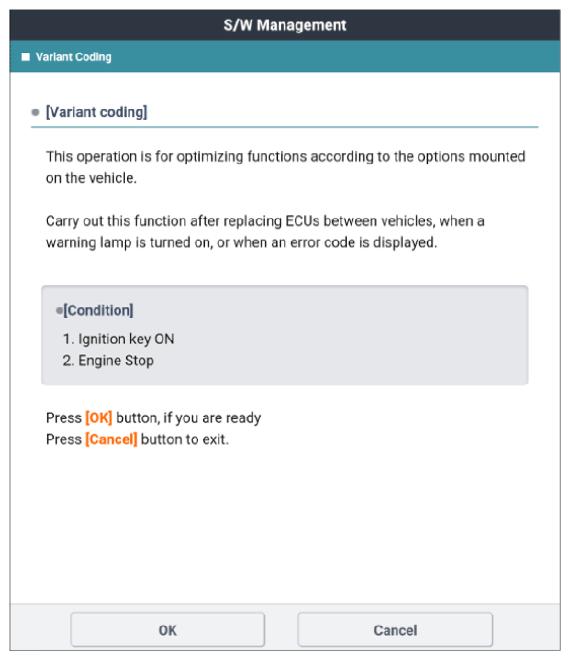

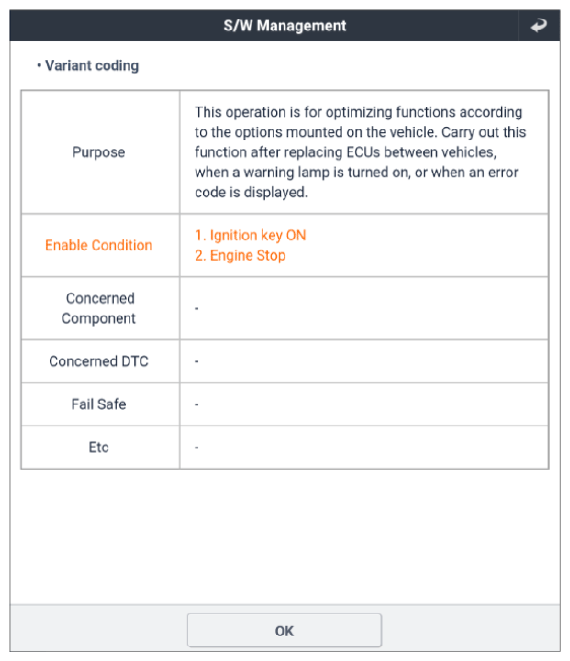

- Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
|
Fig.1 to 3 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |

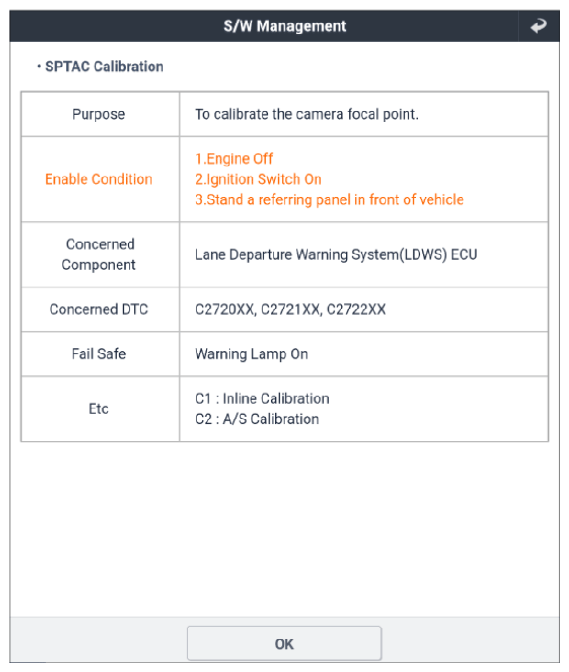

- Ignition "ON". (with calibration target)
|
- Connect KDS to "Data Link Connector (DLC)".

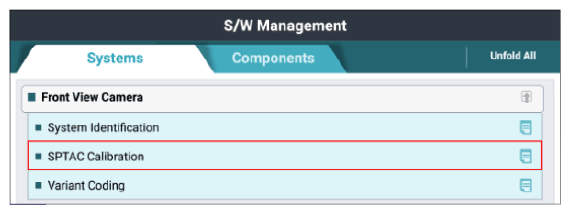

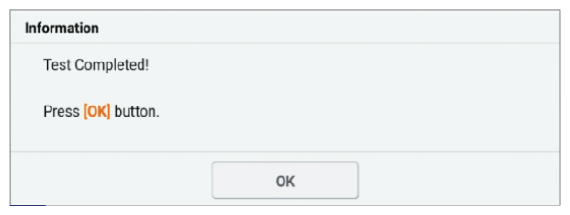

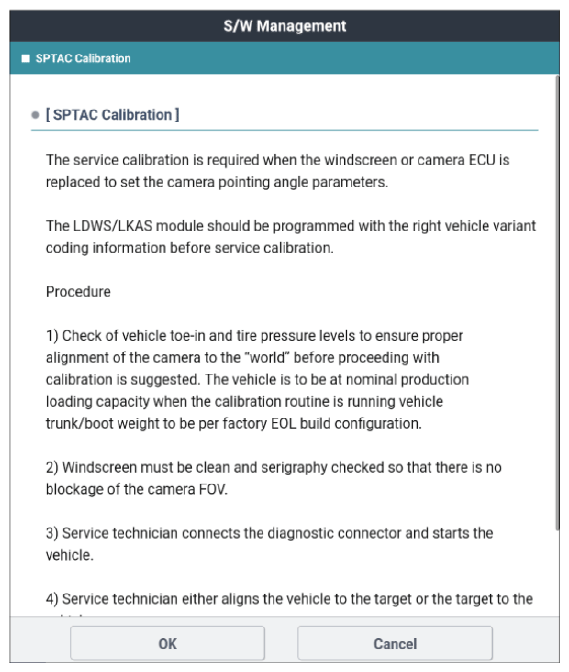

- Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
|
Fig.1 to 9 |
- In cases that require the calibration
- In case of MFC ECU replacement.
- In case MFC ECU is removed from the windshield or bracket.
- In case of windshield replacement.
- In case MFC bracket is damaged.
- Calibration procedure
- Check for vehicle alignment and tire pressure for accurate camera calibration.
- Windshield must be clean and free of any dirt or object.

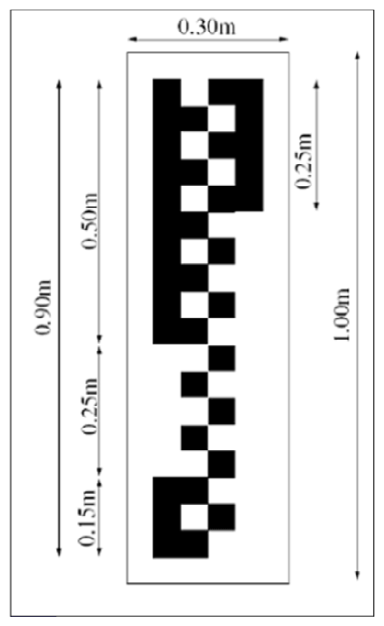

- Calibration target installation procedure as follows:

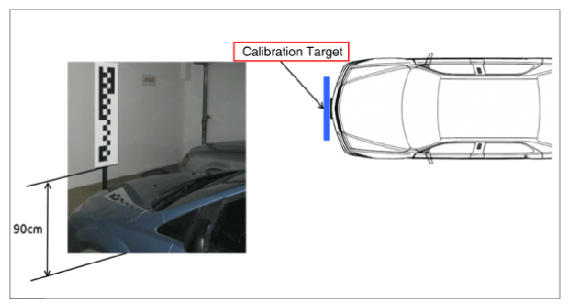

- Set the calibration target height approx. 88 to 92cm from the ground and align the center of target with center line of vehicle.
- Center of target and center of vehicle should be within -5 to +5cm

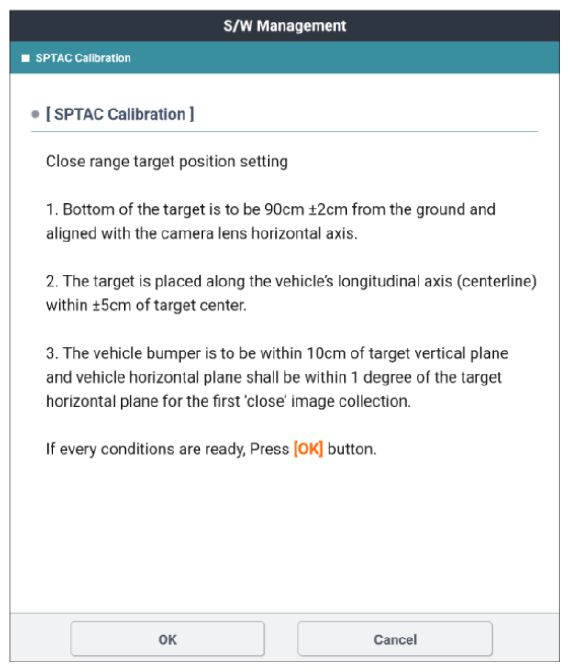

- Position the calibration target approx. 0cm from the center of vehicle front wheel. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1 degree. (Close range target setting)
- Perform distance target setting after performing close target setting.

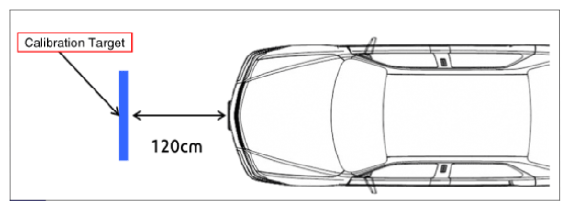

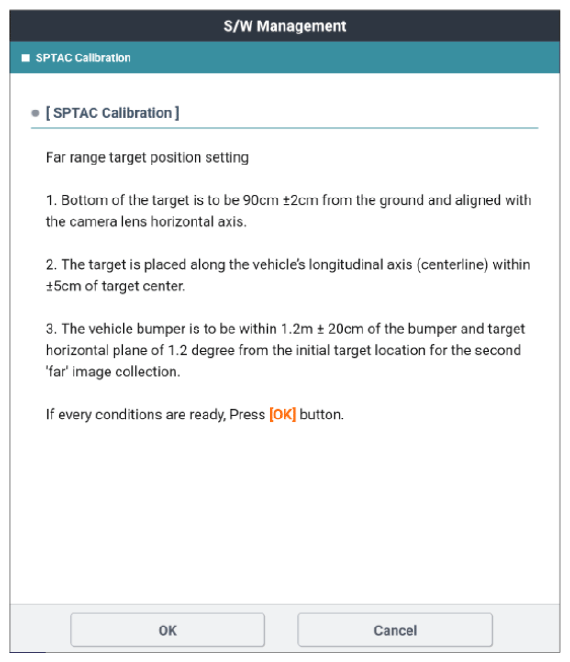

- Position the calibration target 1.2 m from the front bumper. Horizontal line of vehicle and horizontal line of calibration target angle should be within 1 degree. (Far range target setting)
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
