Front Wiper Motor

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cowl top cover.

    (Refer to Body - "COWL TOP COVER ")

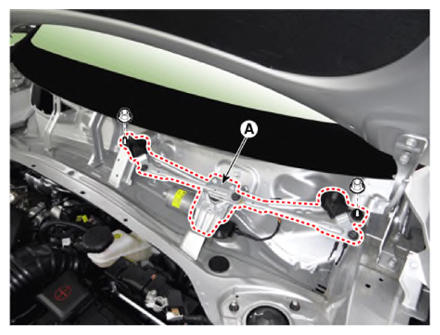

  2. Remove the wiper motor & linkage assembly (A) after loosening the mounting bolts.

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

    G13482131Courtesy of KIA MOTORS AMERICA, INC.

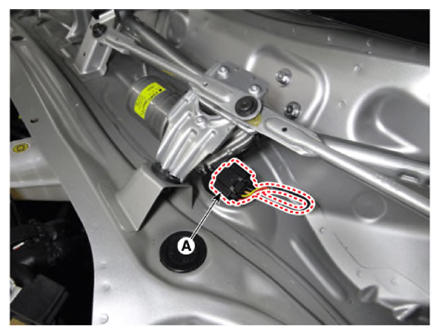

  3. Disconnect the wiper motor connector (A).
    G13482132Courtesy of KIA MOTORS AMERICA, INC.
