Rear Wiper Arm
WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

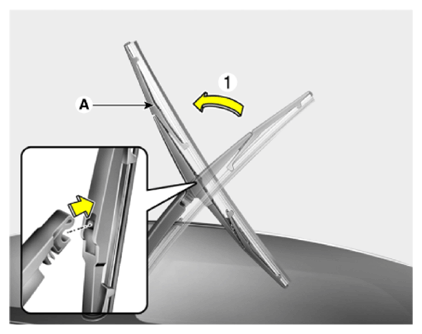

- After raise the wiper arm, remove the blade (A) by pulling it.
 Courtesy of KIA MOTORS AMERICA, INC.
|

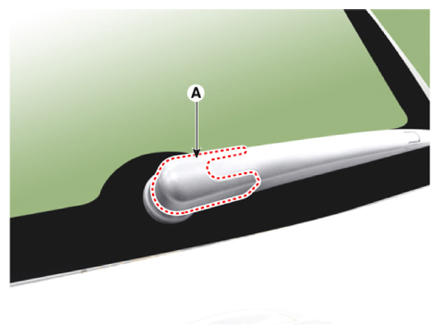

- Remove the rear wiper cap (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

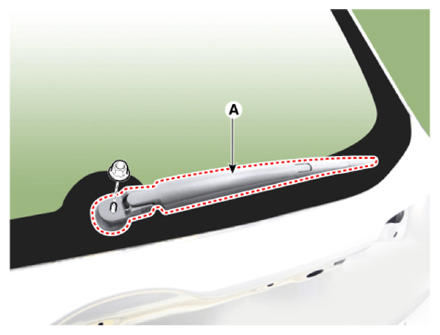

- Remove the rear wiper arm (A) after loosening the mounting nut.
Tightening torque:
3.9 - 6.9 N.m (0.4 - 0.7 kgf.m, 2.9 - 5.1 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
