Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")

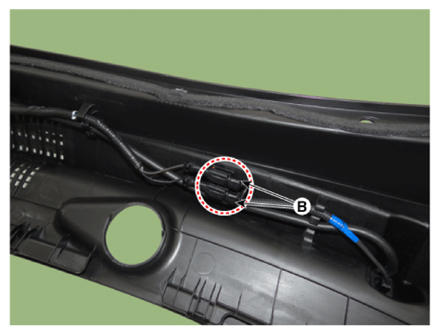

- Disconnect the connectors (B) from the washer heated nozzle.

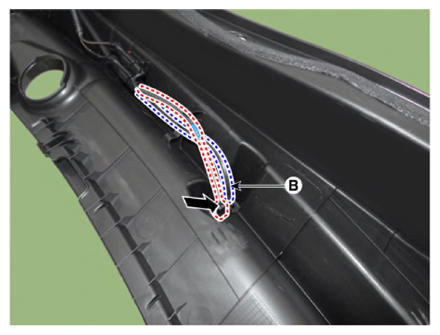

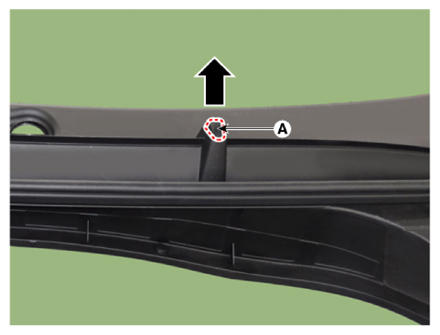

- Remove the washer heated nozzle (A) by pushing the hook in the direction of the arrow after separating the hose (B).
