Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Remove the plug hole (A).

Courtesy of KIA MOTORS AMERICA, INC.

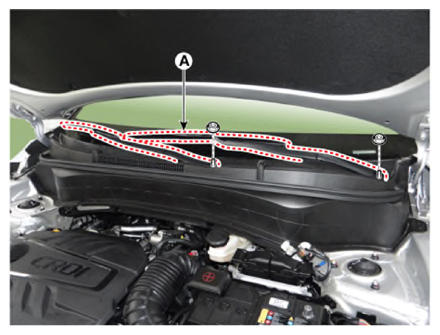

Remove the nuts, and then remove the wiper arm (A).
Tightening torque:

23-27 N.m (2.34 - 2.76 Kgf.m, 16.9 - 19.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

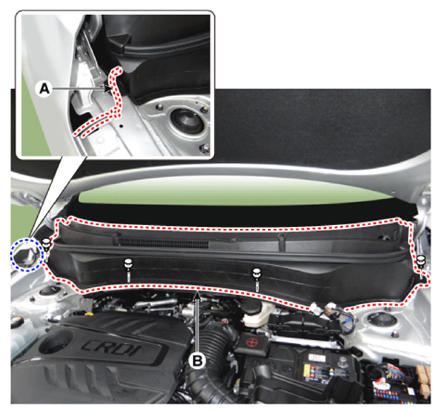

Disconnect the washer nozzle (A).
Detach the clips, then remove the cowl top cover (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
