Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the cluster assembly.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

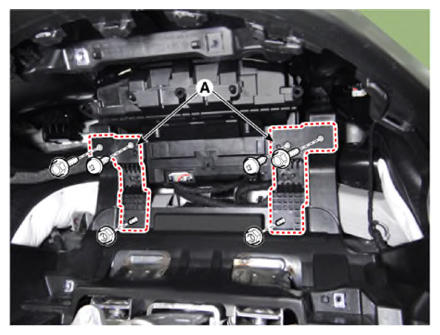

  2. Remove the head up display support bracket (A) after loosening the mounting screws, nuts, bolts.
    G13486683Courtesy of KIA MOTORS AMERICA, INC.

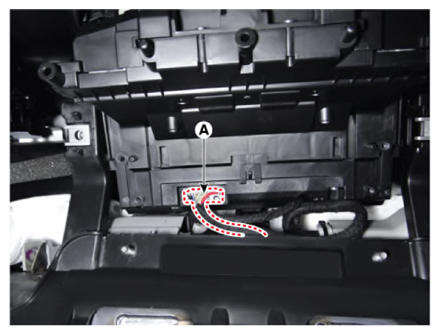

  3. Disconnect the head up display unit connector (A).
    G13486684Courtesy of KIA MOTORS AMERICA, INC.

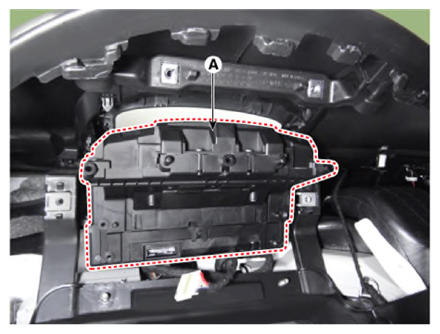

  4. Remove the head up display unit (A) from the main crash pad assembly.
    G13486685Courtesy of KIA MOTORS AMERICA, INC.
