Components Description

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

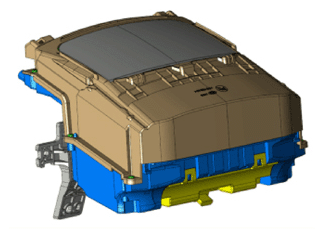

Head Up Display: Electronic system that provides safety and convenience by displaying the vehicle information on the combiner screen to minimize movement of the driver's eye.

Courtesy of KIA MOTORS AMERICA, INC.

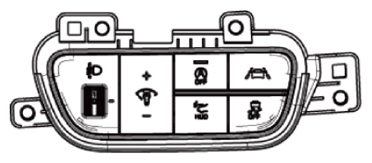

HUD ON/OFF
There is ON/OFF switch for Head Up Display Enable/disable on C/PAD

Courtesy of KIA MOTORS AMERICA, INC.

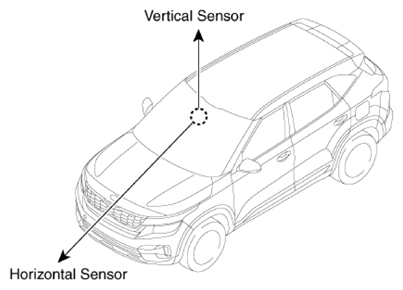

Illumination Sensor: It is equipped with bidirectional (vertical and horizontal) sensor. HUD brightness is controlled depending on horizontal measurement (ambient brightness).
- Built-in bidirectional illumination sensor

Courtesy of KIA MOTORS AMERICA, INC.

Information

If illumination sensor measurement could not be detected, HUD will not be displayed. Check for normal operation of illumination sensor before inspecting HUD.
