Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. RCCA activation condition
    1. USM: Check [Driver Assistance > Parking Safety > Rear Cross-Traffic Safety]
    2. Shift lever position: R range
    3. Vehicle speed: -10 to 0 km/h (-7 to 0 mile/h)
    4. Relative vehicle speed: 5 - 36 km/h (3 - 22 mile/h)
    5. Operating distance: 0.5 - 20 m

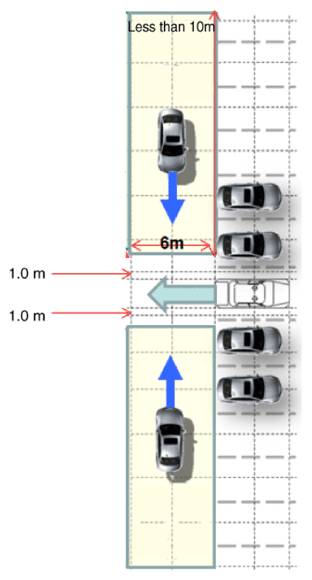

  2. Warning zone
    G13482447Courtesy of KIA MOTORS AMERICA, INC.
    1. Conditions for RCCA ON
      1. Conditions: Shift lever "R" selection & 10 km/h or lower vehicle speed, 5 - 36 km/h (3 - 22 mph) relative vehicle speed, Distance 0.5 - 20 m
      2. A warning is generated for the target vehicle if it is between 2.1 - 3.5 seconds based on Time To Intervention (TTI) when entering target vehicle is located warning zone.
      3. Braking happens for the target vehicle within 2 seconds based on TTI.
