Blind-Spot Collision Warning (BCW)

1. USM: [Driver Assistance > Blind-Spot Safety > Active Assist or Warning Only]
2. Vehicle Speed: 30 - 255 km/h (20 - 158 mile/h)
3. Relative vehicle speed: -10 to 255 km/h (-6 to 158 mile/h)

   (Negative value refers to the distance of the vehicle ahead.)

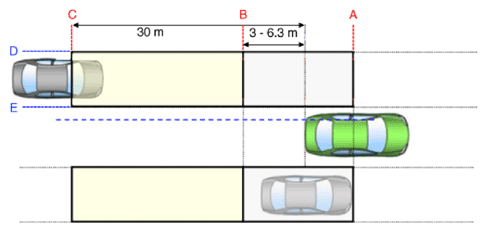

A to B: Blind spot zone

B to C: Closing vehicle zone

Courtesy of KIA MOTORS AMERICA, INC.

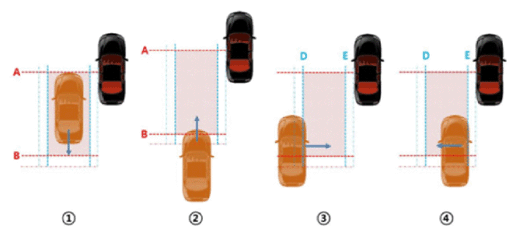

1. Conditions for blind spot zone warning ON
   1. The entire body of the target vehicle is located behind line A.
   2. Any part of the target vehicle passes line B.
   3. Any part of the target vehicle that passes line D and enters.
   4. The entire part of the target vehicle passes the E.

   Courtesy of KIA MOTORS AMERICA, INC.

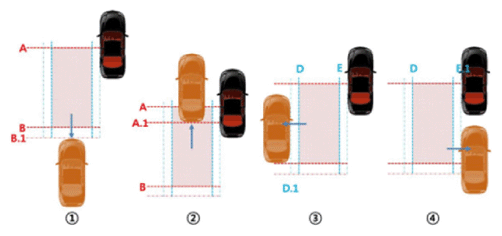

2. Conditions for blind spot zone warning OFF
   1. The entire body of the target vehicle is move behind line B.1.
   2. The entire body of the target vehicle passes line A.1.
   3. The entire body of the target vehicle passes line D.1.
   4. The entire body of the target vehicle passes line E.1.

   Courtesy of KIA MOTORS AMERICA, INC.

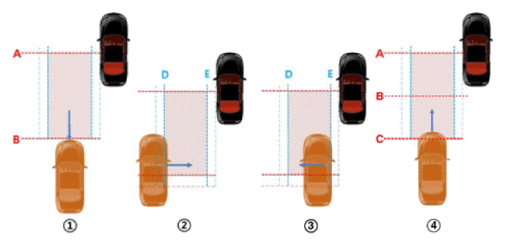

3. Conditions for closing vehicle zone warning ON
   1. The entire body of the target vehicle is located before line B.
   2. Any part of the target vehicle passes line D.
   3. The entire body of the target vehicle passes line E.
   4. In the all above condition, Time To Collision (TTC) is less than 4.5 seconds.

   Courtesy of KIA MOTORS AMERICA, INC.

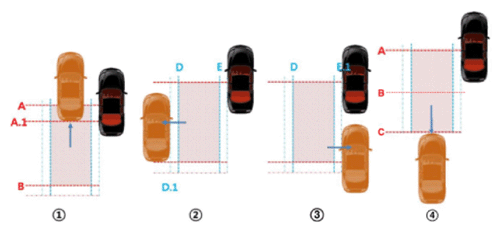

4. Conditions for closing vehicle zone warning OFF
   1. The entire body of the target vehicle passes line A.1.
   2. The entire body of the target vehicle passes line D.1.
   3. The entire body of the target vehicle passes line E.1.
   4. In the all above condition, Time To Collision (TTC) is less than 4.5 seconds.

   Courtesy of KIA MOTORS AMERICA, INC.
