Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

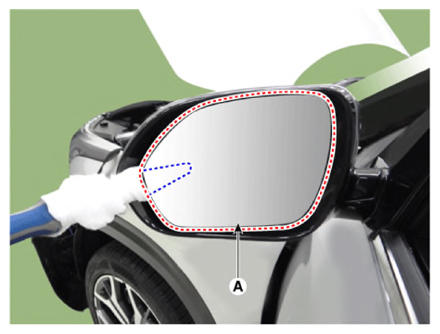

  2. Remove the mirror (A).
    G13482469Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to damage mirror and mirror housing during removal process.
    • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

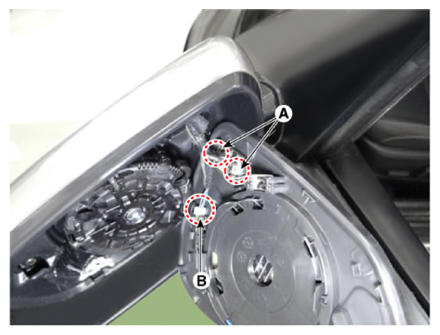

  3. Disconnect the heater connectors (A) and BCW connector (B).
    G13482470Courtesy of KIA MOTORS AMERICA, INC.
