Repair Procedures: Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

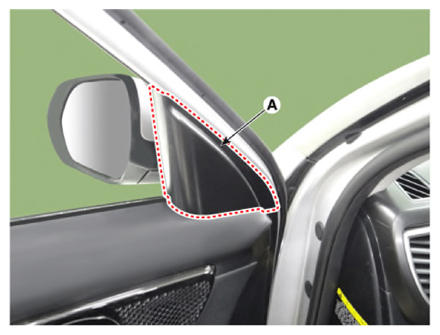

  1. Remove the quadrant cover (A).
    G13482466Courtesy of KIA MOTORS AMERICA, INC.

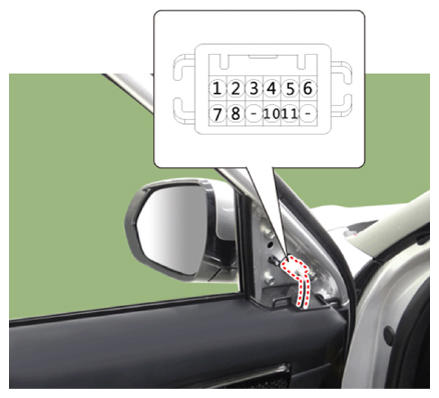

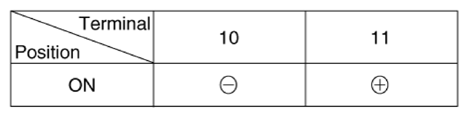

  2. Check that the mirror operates properly as shown in the table below.
    G13482467Courtesy of KIA MOTORS AMERICA, INC.
    G13482468Courtesy of KIA MOTORS AMERICA, INC.
