Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the passenger airbag module has been deployed, replace the damaged crash pad.

Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

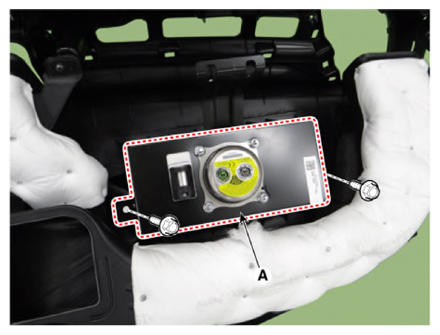

Remove the passenger airbag module (A) after loosening the bolts.
Tightening torque:

3.9 - 5.8 N.m (0.4 - 0.6 kgf.m, 2.8 - 4.3 lb.ft, 34.7 - 52.0 lb.in)
