Operation Principle: Notes
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

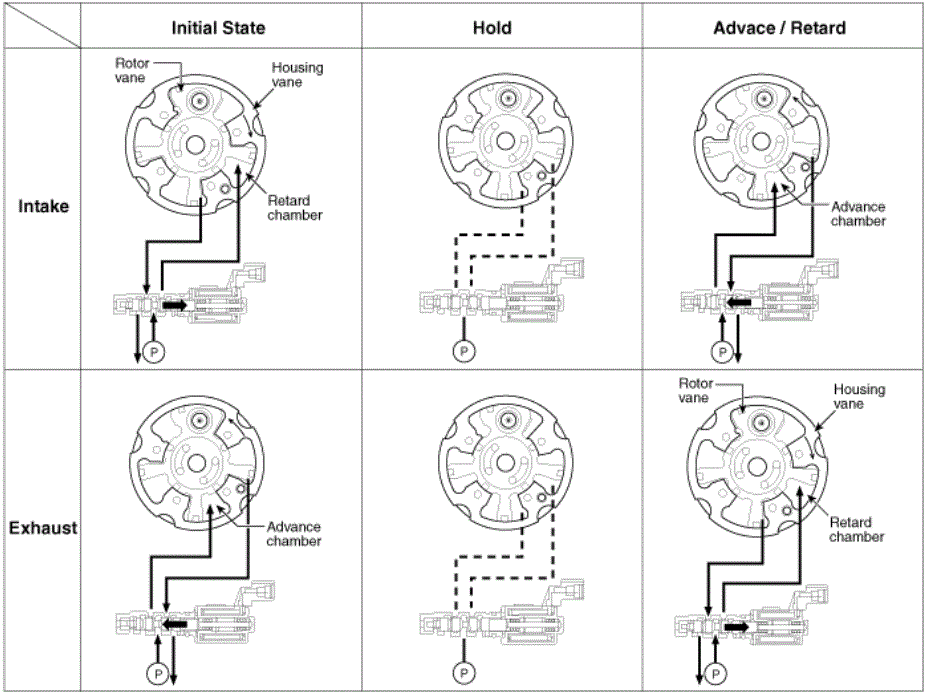

The CVVT has the mechanism rotating the rotor vane with hydraulic force generated by the engine oil supplied to the advance or retard chamber in accordance with the CVVT oil control valve control.
Information
- A separate solenoid valve is installed on the chain cover in the intake side for closing and releasing a separate lock pin.
