Home >> Hyundai >> 2018 >> Kona Limited, FWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 26 (Airbag System Diagnosis (2 Of 4)) >> DTC B1479-00: Inflatable Curtain Airbag Passenger Resistance Circuit Short To Ground >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

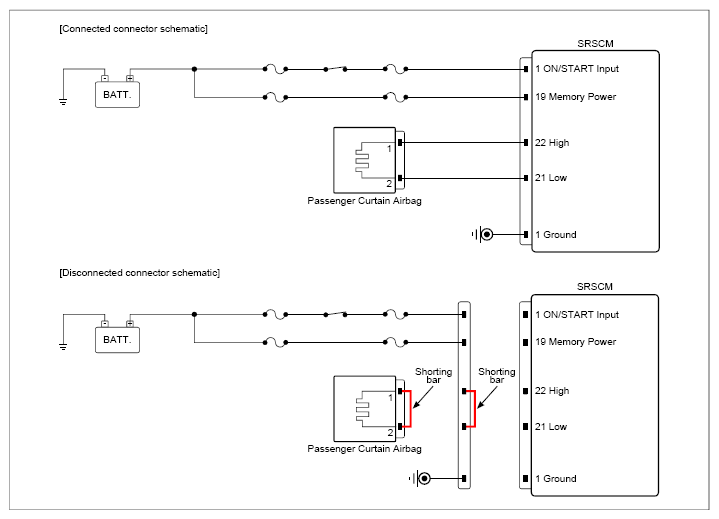

G13483772Courtesy of KIA MOTORS AMERICA, INC.

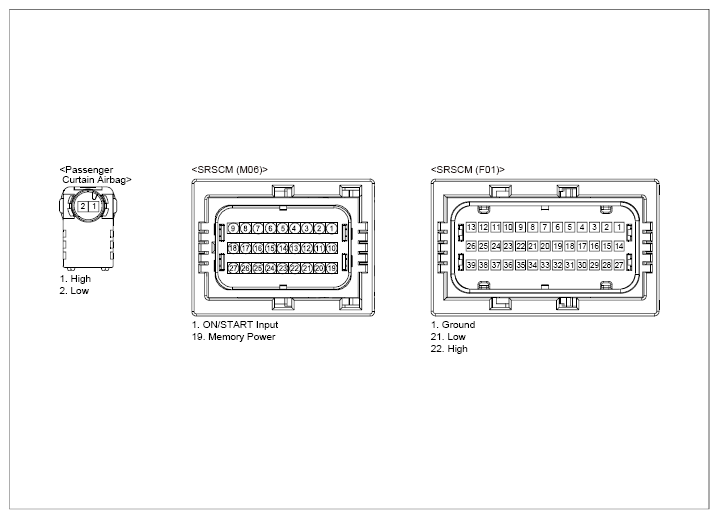

G13483773Courtesy of KIA MOTORS AMERICA, INC.
