Home >> Hyundai >> 2018 >> Kona Limited, FWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 26 (Airbag System Diagnosis (2 Of 4)) >> DTC B1478-00: Inflatable Curtain Airbag Passenger Resistance Too Low >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

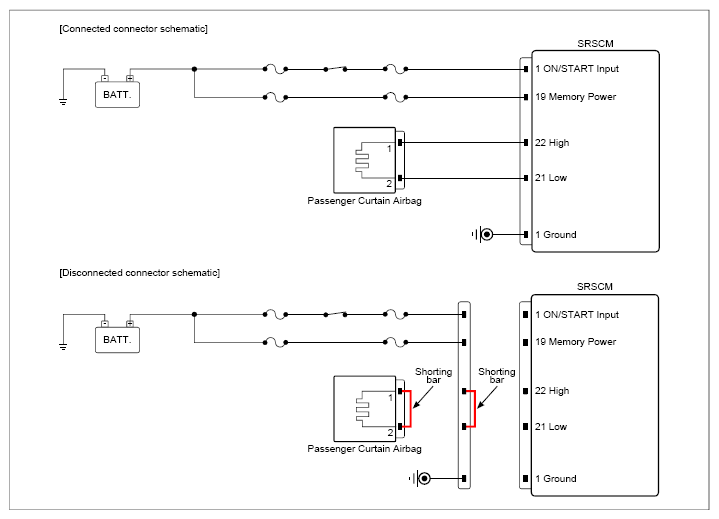

G13483766Courtesy of KIA MOTORS AMERICA, INC.

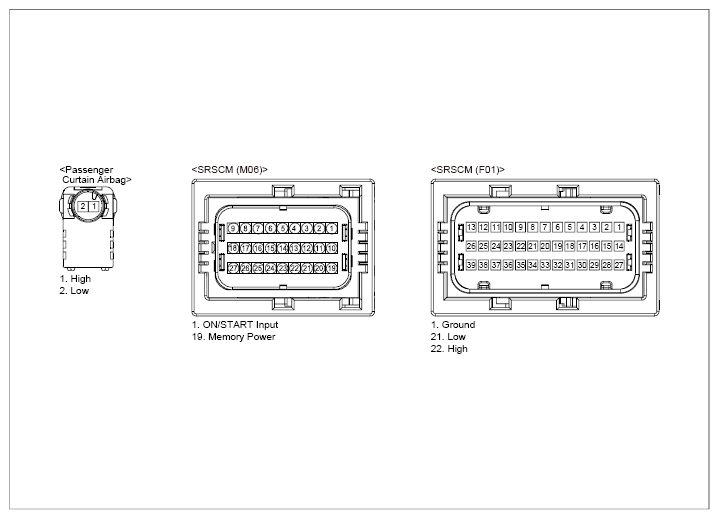

G13483767Courtesy of KIA MOTORS AMERICA, INC.
