Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

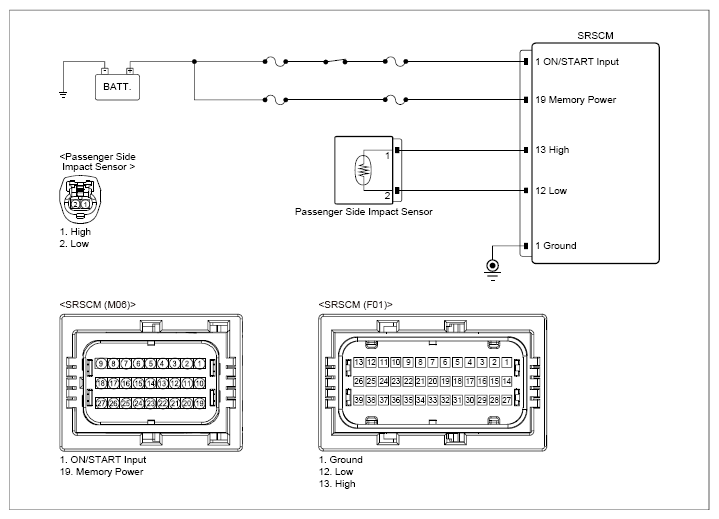

G13483720

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the battery (-) terminal cable from the battery, and wait at least five minutes. Disconnect the electrical connector(s) from the concerned component.	PSIS connector	1 (high)	SRSCM connector	13 (high)	Approx. below 1Ω
	PSIS connector	2 (low)	SRSCM connector	12 (low)	Approx. below 1Ω
	PSIS connector	1 (high)	Chassis ground	-	∞ (infinity)Ω
	PSIS connector	2 (low)	Chassis ground	-	∞ (infinity)Ω
Connect the SRSCM main connector. Connect the battery (-) terminal cable to the battery. Ignition "ON".	PSIS connector	1 (high)	Chassis ground	-	Fig.1
	PSIS connector	2 (low)	Chassis ground	-	Fig.1

G13483721

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF REPAIR " procedure.
