Monitor KDS Data
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". |
|

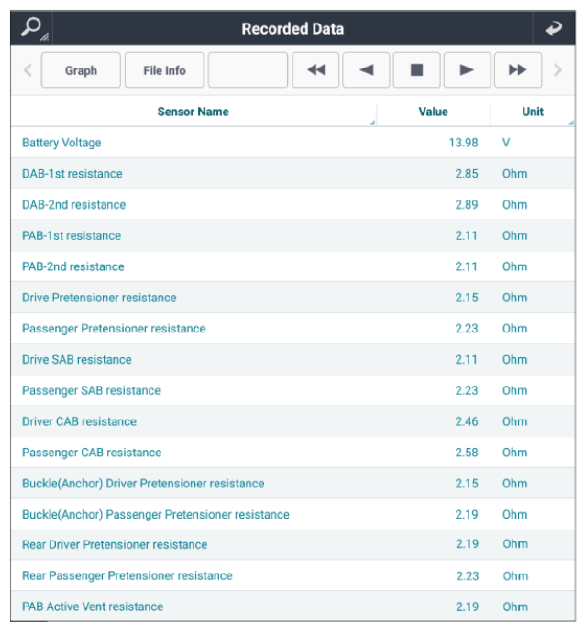

Fig.1 |

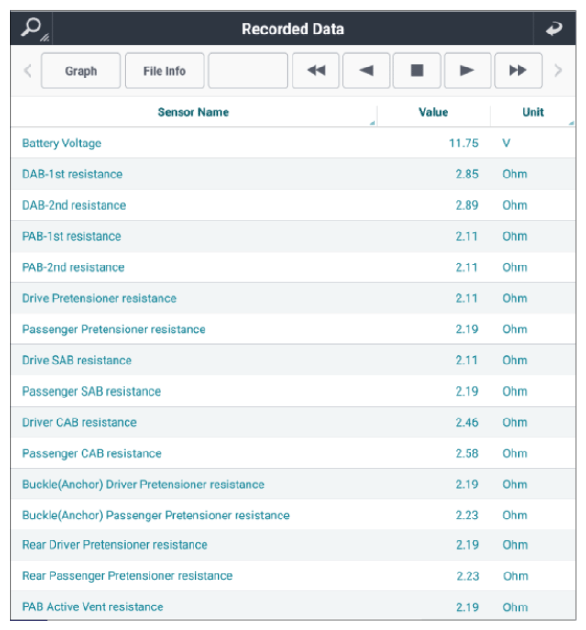

| 2. Engine "ON". | Fig.2 |
CAUTION:
If you strike or spin the SRSCM at the ignition "ON" state, the BPT, CAB or SAB could be unfolded and bring on danger. Handle it with care.
Good
- Fault is intermittent caused by poor contact in the sensor's and/or SRSCM's connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Check for short between ignition circuits of DAB, PAB, BPT, CAB, SAB, APT. If the condition of harness and component is OK, this fault is caused by SRSCM internal error so replace a known-good SRSCM and then go to "VERIFICATION OF REPAIR " procedure.
