Home >> Hyundai >> 2018 >> Kona Limited, FWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 26 (Airbag System Diagnosis (2 Of 4)) >> DTC B1379-00: Side Airbag Front-Driver Resistance Too Low >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

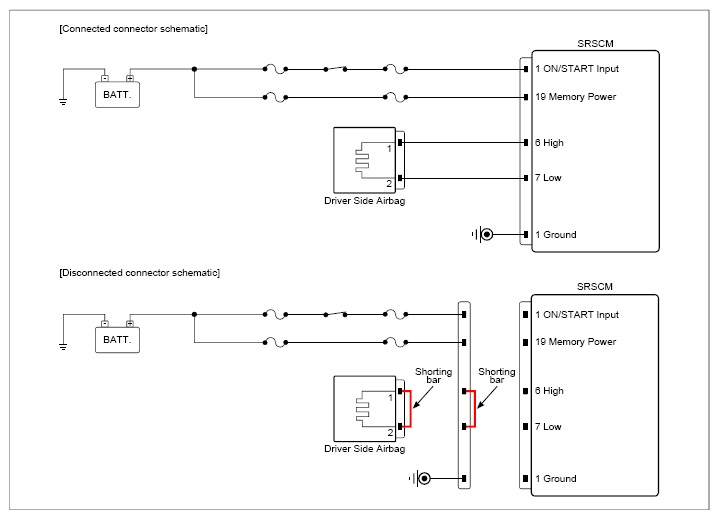

G13483640Courtesy of KIA MOTORS AMERICA, INC.

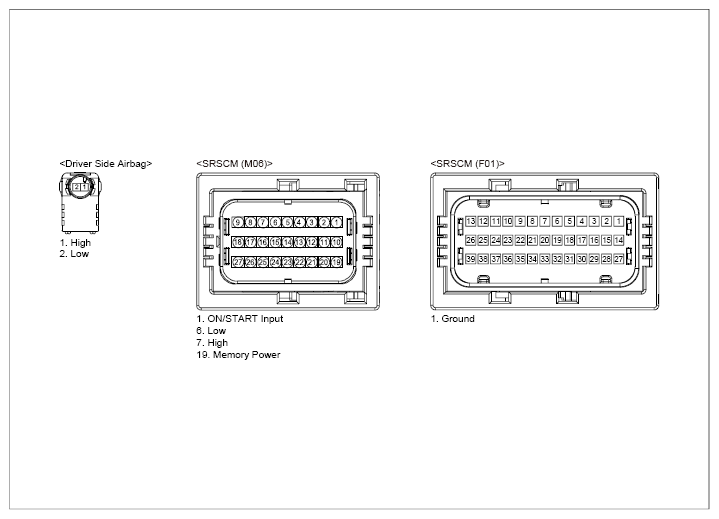

G13483641Courtesy of KIA MOTORS AMERICA, INC.
