Body Sensor Reset

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".

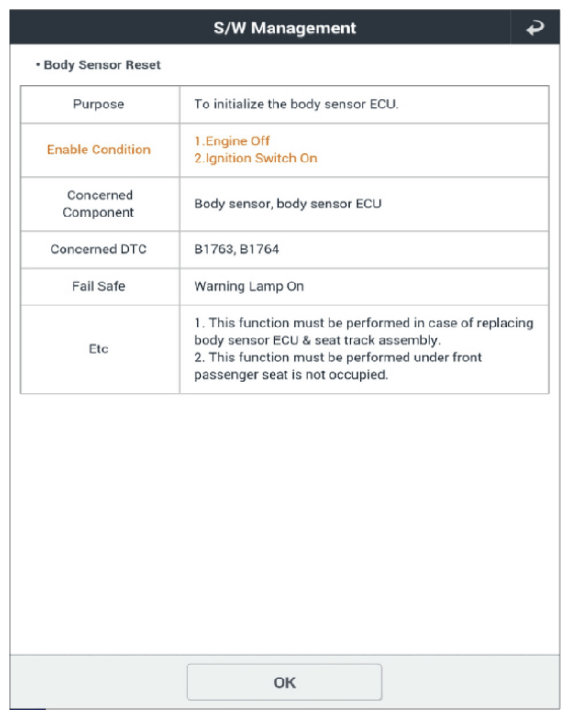

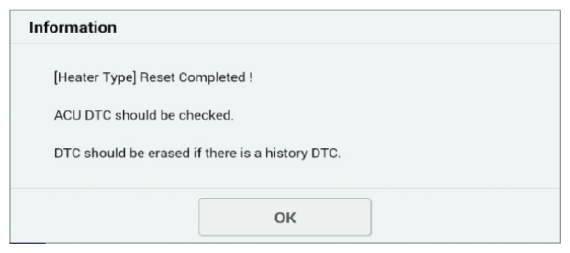

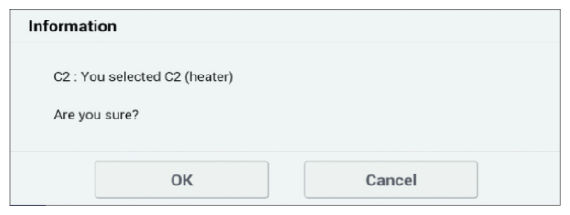

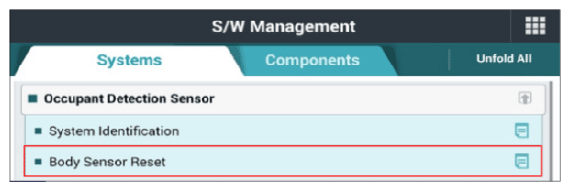

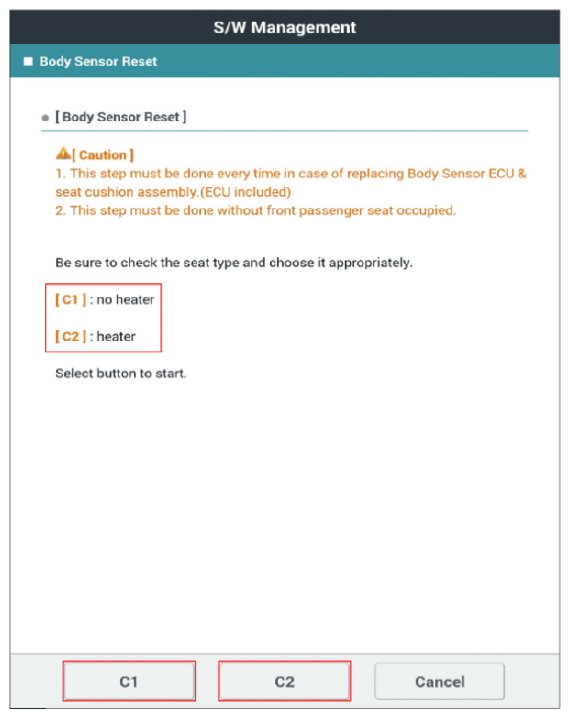

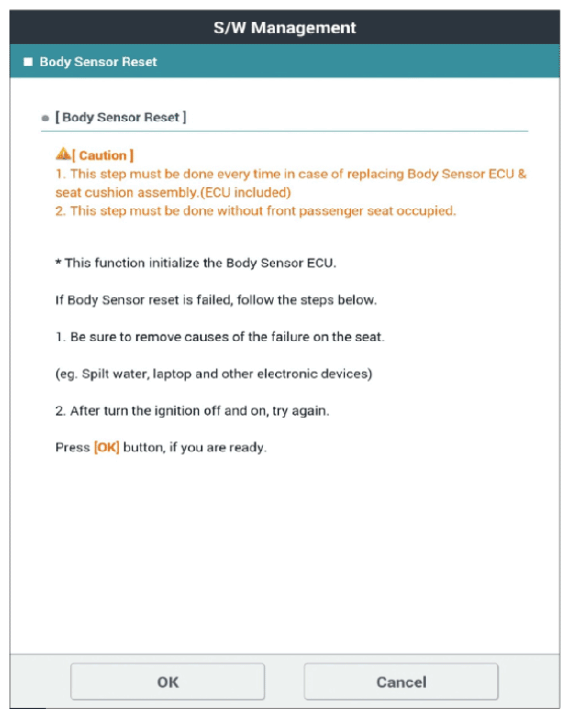

 Fig.1 to 6
G13494375Courtesy of KIA MOTORS AMERICA, INC.
G13494376Courtesy of KIA MOTORS AMERICA, INC.
G13494377Courtesy of KIA MOTORS AMERICA, INC.
G13494378Courtesy of KIA MOTORS AMERICA, INC.
G13494379Courtesy of KIA MOTORS AMERICA, INC.
G13494380Courtesy of KIA MOTORS AMERICA, INC.
