Body Sensor Reset

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

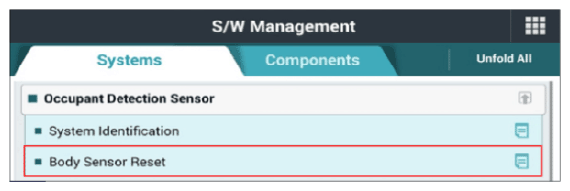

G13494366Courtesy of KIA MOTORS AMERICA, INC.

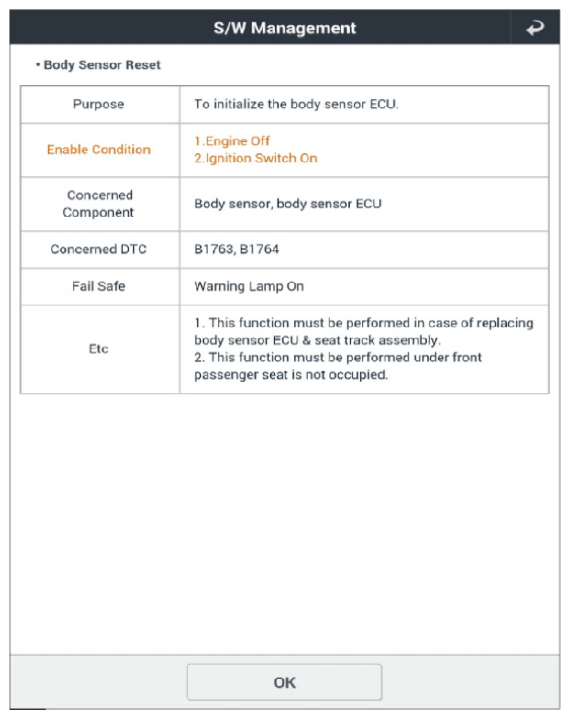

G13494367Courtesy of KIA MOTORS AMERICA, INC.

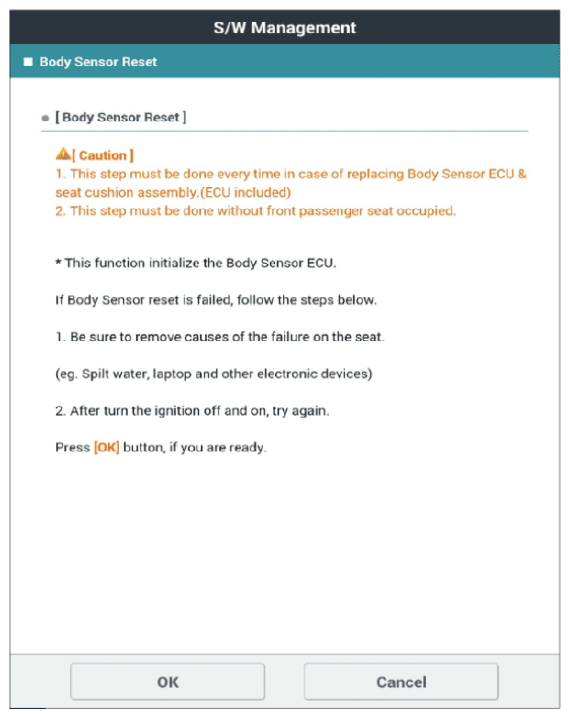

G13494368Courtesy of KIA MOTORS AMERICA, INC.

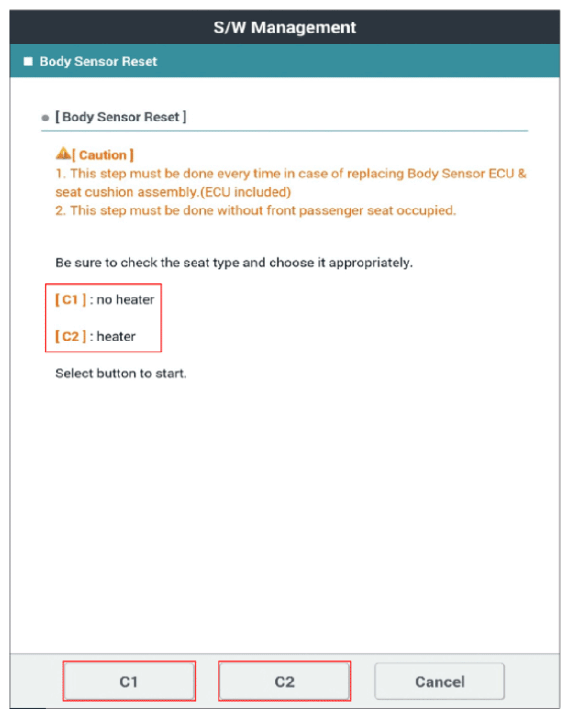

G13494369Courtesy of KIA MOTORS AMERICA, INC.

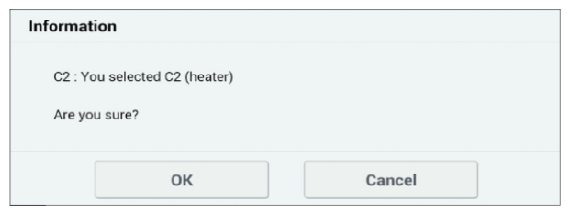

G13494370Courtesy of KIA MOTORS AMERICA, INC.

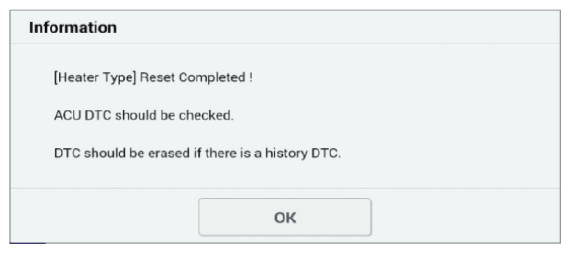

G13494371Courtesy of KIA MOTORS AMERICA, INC.
