Body Sensor Reset

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".

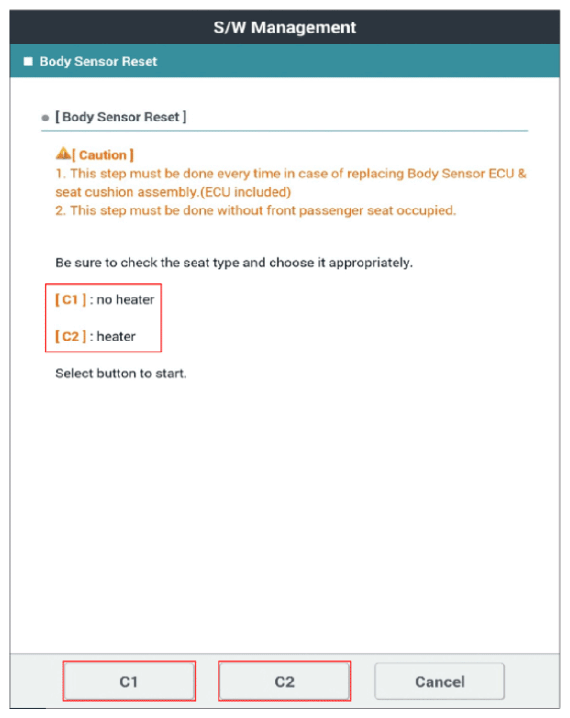

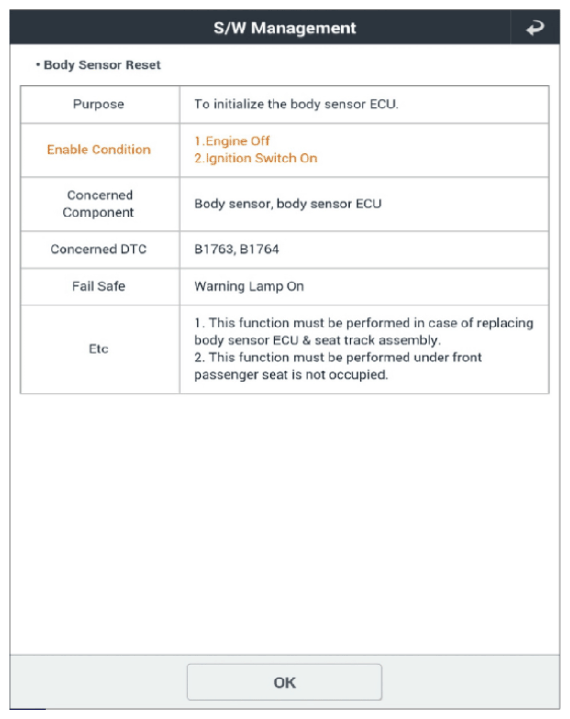

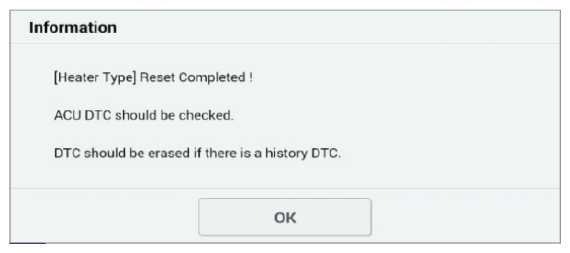

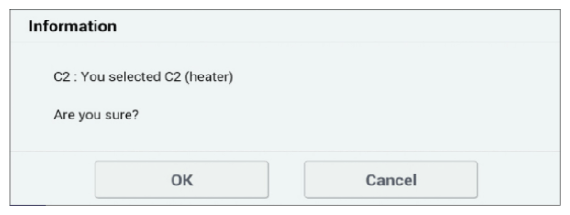

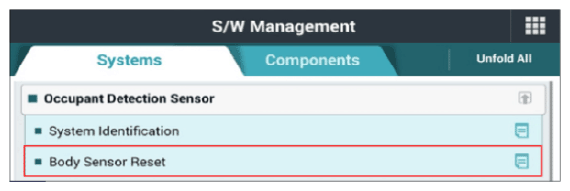

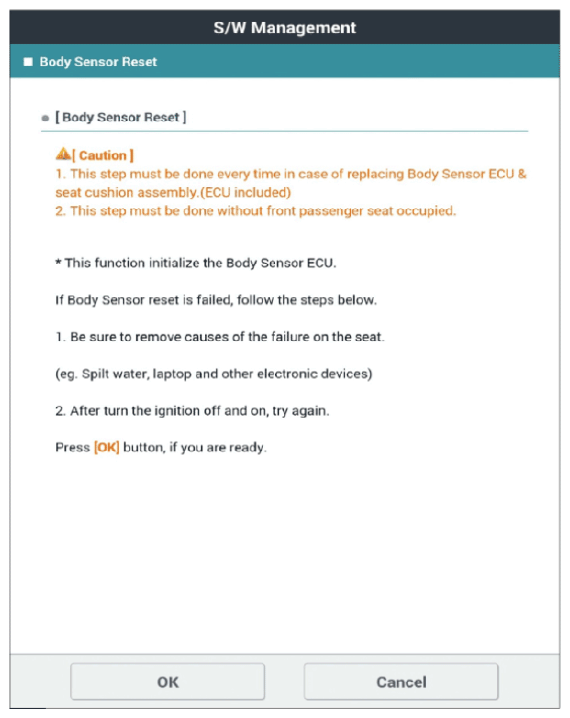

 Fig.1 to 6
G13494356Courtesy of KIA MOTORS AMERICA, INC.
G13494357Courtesy of KIA MOTORS AMERICA, INC.
G13494358Courtesy of KIA MOTORS AMERICA, INC.
G13494359Courtesy of KIA MOTORS AMERICA, INC.
G13494360Courtesy of KIA MOTORS AMERICA, INC.
G13494361Courtesy of KIA MOTORS AMERICA, INC.
