Body Sensor Reset

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

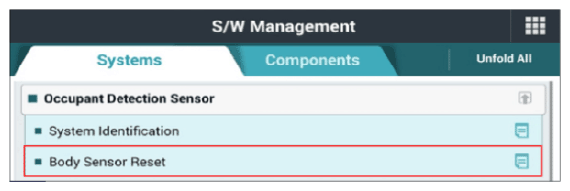

G13494347Courtesy of KIA MOTORS AMERICA, INC.

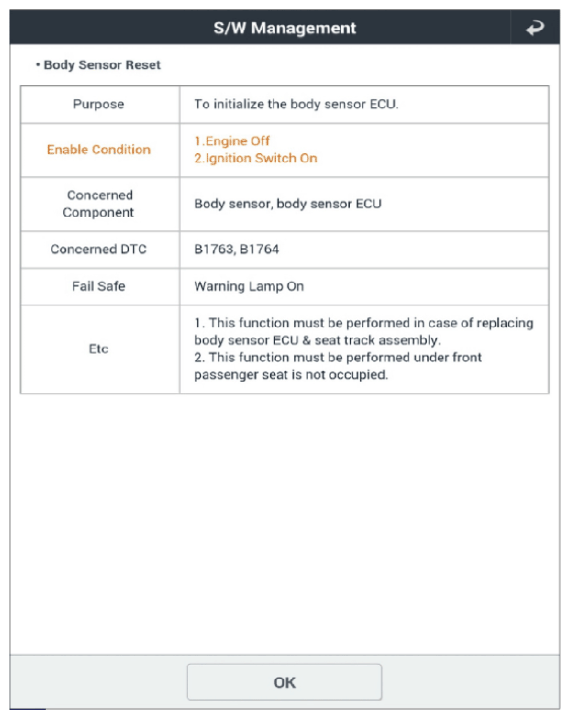

G13494348Courtesy of KIA MOTORS AMERICA, INC.

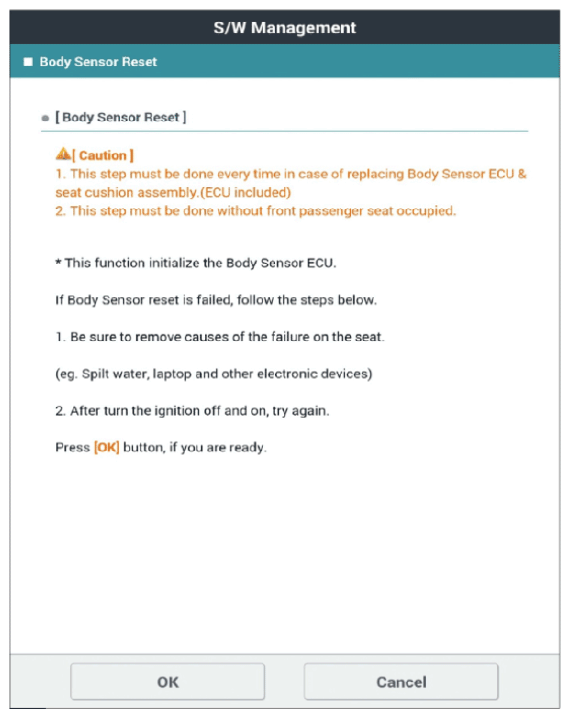

G13494349Courtesy of KIA MOTORS AMERICA, INC.

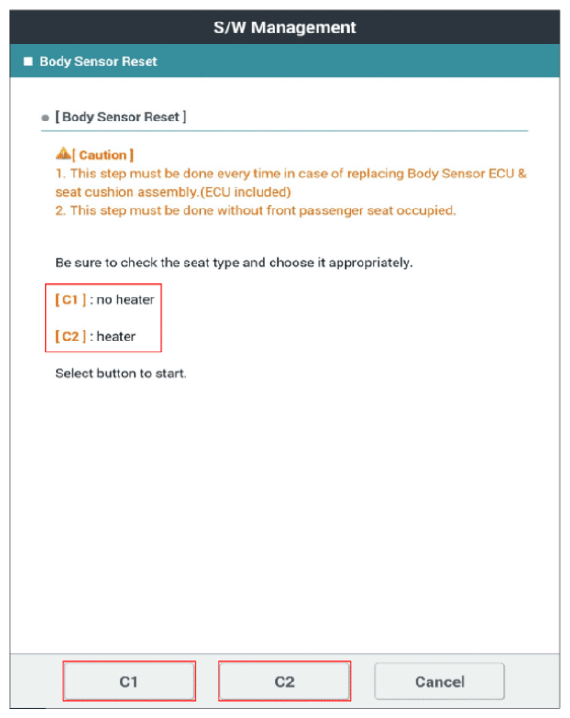

G13494350Courtesy of KIA MOTORS AMERICA, INC.

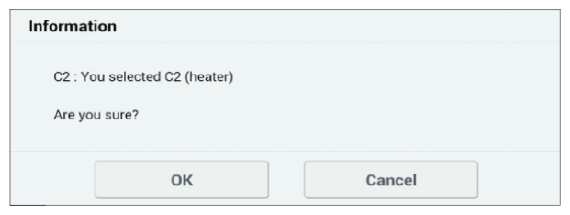

G13494351Courtesy of KIA MOTORS AMERICA, INC.

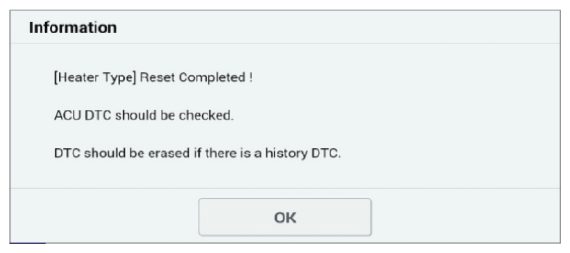

G13494352Courtesy of KIA MOTORS AMERICA, INC.
