Body Sensor Reset

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

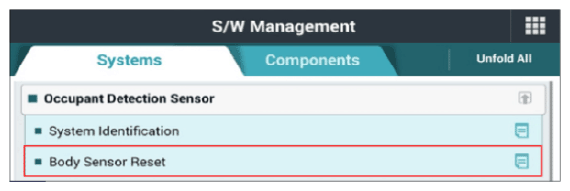

G13494336Courtesy of KIA MOTORS AMERICA, INC.

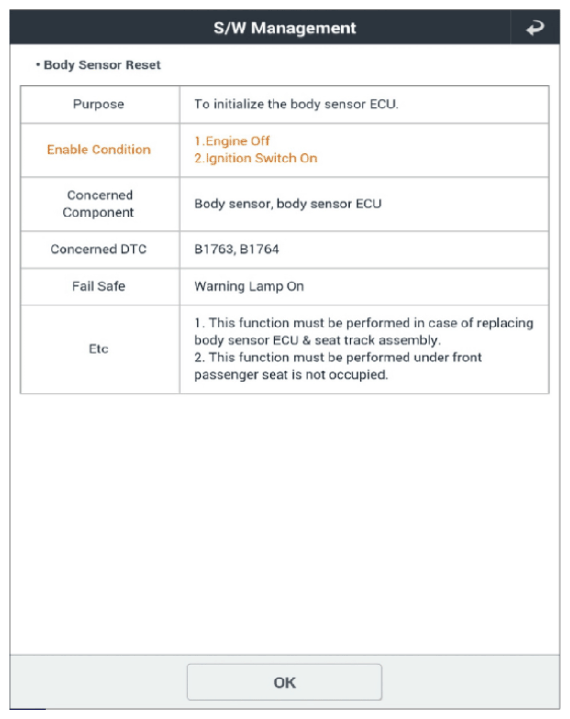

G13494337Courtesy of KIA MOTORS AMERICA, INC.

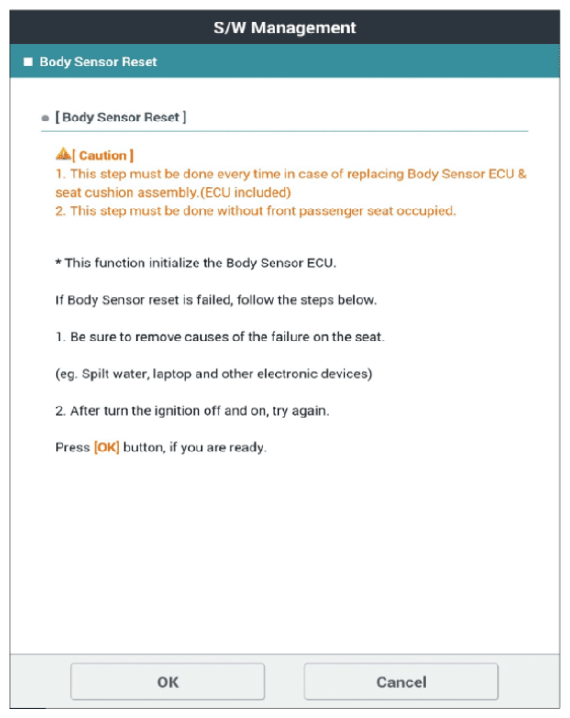

G13494338Courtesy of KIA MOTORS AMERICA, INC.

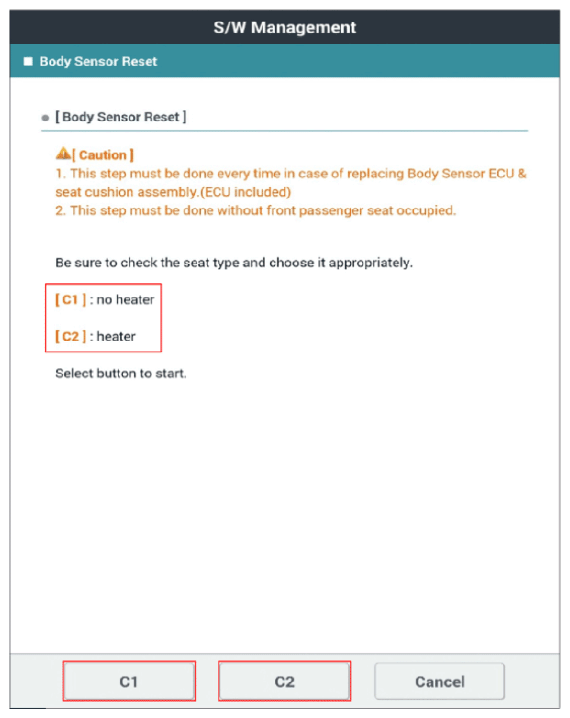

G13494339Courtesy of KIA MOTORS AMERICA, INC.

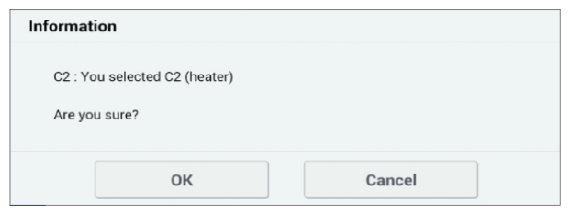

G13494340Courtesy of KIA MOTORS AMERICA, INC.

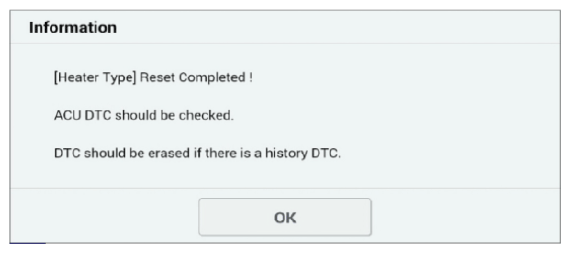

G13494341Courtesy of KIA MOTORS AMERICA, INC.
