Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front bumper assembly.

    (Refer to Front Bumper - "FRONT BUMPER ASSEMBLY ")

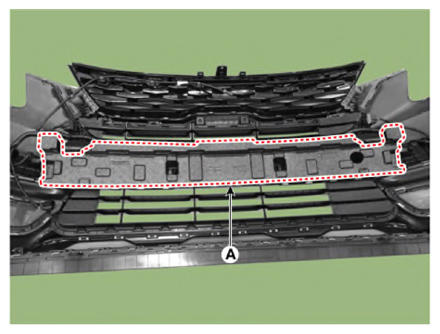

  2. Remove the front bumper energy absorber (A).
    G13486395Courtesy of KIA MOTORS AMERICA, INC.

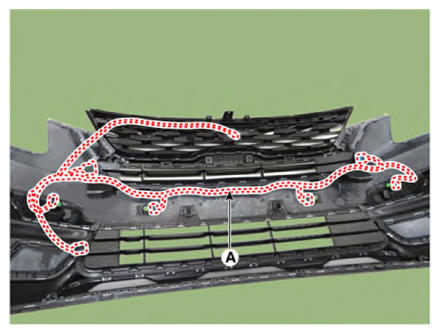

  3. Remove the front bumper wiring (A).
    G13486396Courtesy of KIA MOTORS AMERICA, INC.

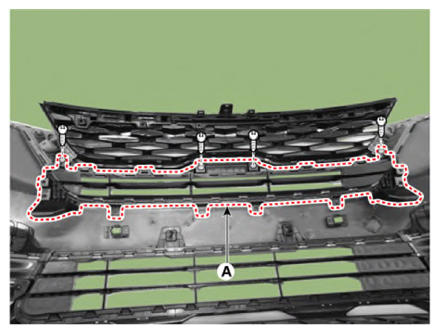

  4. After loosening the mounting screws, remove the radiator lower grille (A).
    G13486397Courtesy of KIA MOTORS AMERICA, INC.

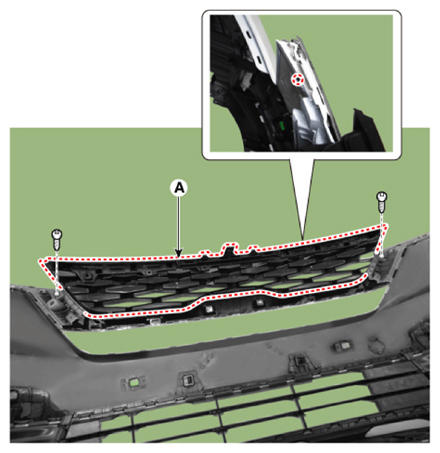

  5. After loosening the mounting rivet and screws, remove the radiator grille (A).
    G13486398Courtesy of KIA MOTORS AMERICA, INC.

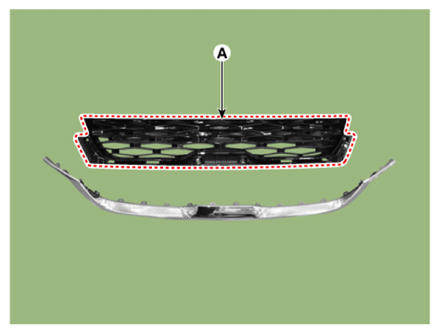

  6. Remove the chrome molding from the radiator grille (A).
    G13486399Courtesy of KIA MOTORS AMERICA, INC.
  7. To install, reinstall in reverse order of removal procedure.

    Information

    Replace any damaged clips (or pin-type retainers).
