Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Take care not to bend or scratch the trim and panels.

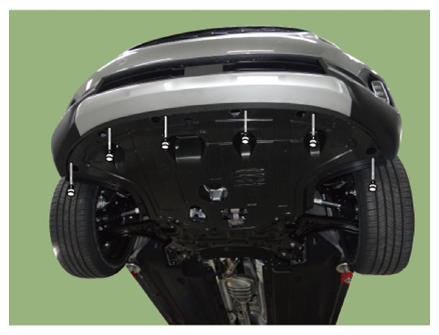

Loosen the front bumper lower mounting clips.

Courtesy of KIA MOTORS AMERICA, INC.

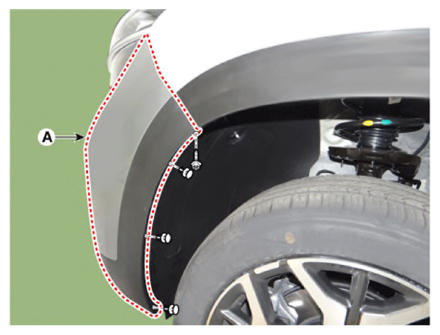

After loosening the clips and bolt on the side of front bumper assembly (A), detach the side part of front bumper assembly.
CAUTION: When you pull out the front bumper assembly, the side part of the front bumper assembly could be damaged by the projection.

Courtesy of KIA MOTORS AMERICA, INC.

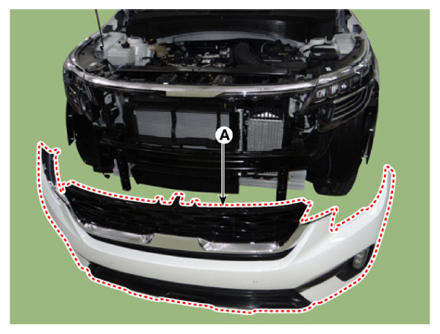

Remove the front bumper assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: [Removal method of front bumper FR Auxiliary Lamp]

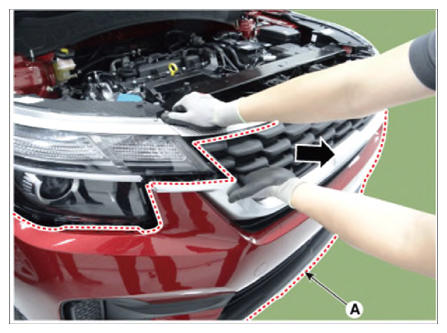

* Hold the inside part of the radiator grille and then remove the front bumper assembly (A) by pulling it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

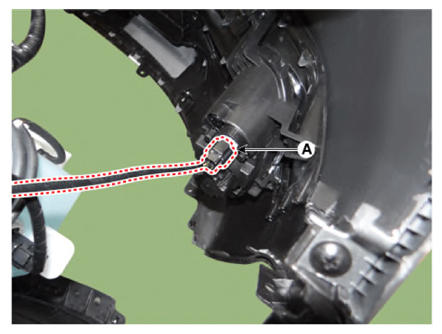

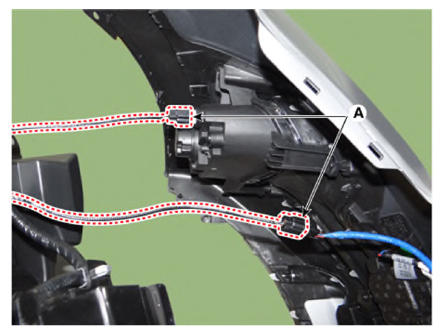

Press the lock pin and separate the front bumper connectors (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
