Glass Adjustment
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Check the glass run channel for damage or deterioration, and replace them if necessary.
- Remove the rear door trim.
(Refer to Rear Door - "REAR DOOR TRIM ")

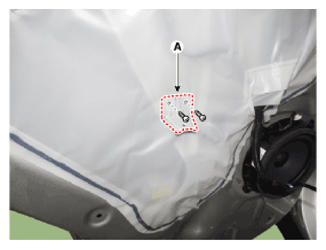

- After loosening the mounting screws, remove the rear door full handle mounting support (A).

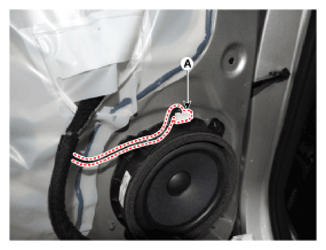

- Disconnect the rear door speaker connector (A).

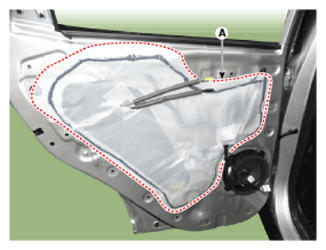

- Remove the rear door trim seal (A).
Information
- Replace any damaged door trim seal.

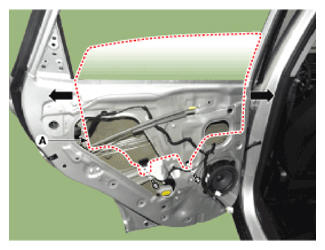

- After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.
- Check the glass for normal operation.
