Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim.
(Refer to Rear Door - "REAR DOOR TRIM ")

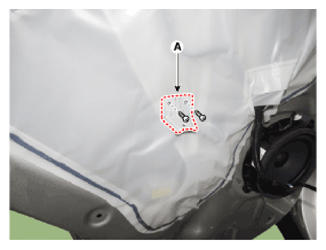

After loosening the mounting screws, remove the Rear door full handle mounting support (A).

Courtesy of HYUNDAI MOTOR AMERICA

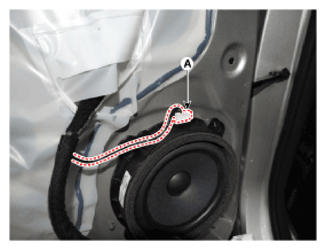

Disconnect the Rear door speaker connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

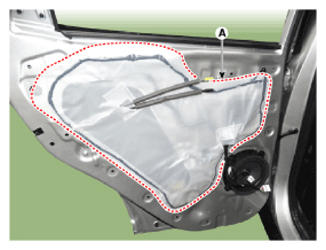

Remove the Rear door trim seal (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information
- Replace any damaged door trim seal.

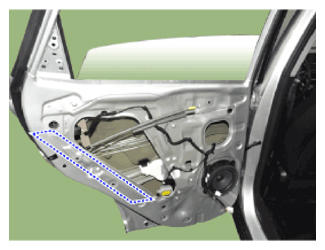

Unscrew the rear door channel mounting nut and bolt (A) loosely.
Tightening torque

Nut: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m) 5.8 - 8.7 lb-ft

Bolt: 8.8 - 113.7 N.m (0.9 - 1.4Kgf.m) 6.5 - 10.1 lb-ft

Courtesy of HYUNDAI MOTOR AMERICA

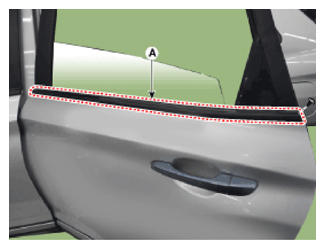

After loosening the mounting screws, remove the rear door belt outside weather strip (A) by pulling it upward.

Courtesy of HYUNDAI MOTOR AMERICA

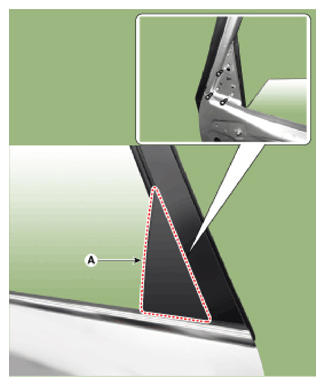

After loosening the mounting screws, remove the Rear door delta molding (A).

Courtesy of HYUNDAI MOTOR AMERICA

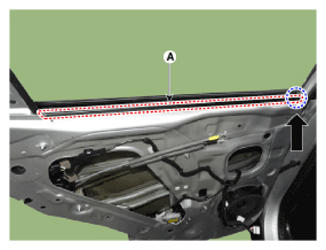

Remove the rear door belt inside weatherstrip (A).

Courtesy of HYUNDAI MOTOR AMERICA
By operating the power window switch, pull down until the glass mounting bolt on plug hole is visible.
CAUTION:
- Be careful not to damage the glass surface.

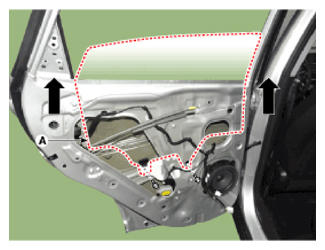

Loosen the mounting bolt and then pull out the rear door window glass (A) by tilting it sideways.
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure that the glass rolls up and down smoothly.
- Adjust glass position as needed.
- Make sure the door locks and opens properly.
- Replace any damaged clips (or pin-type retainers).
