Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.

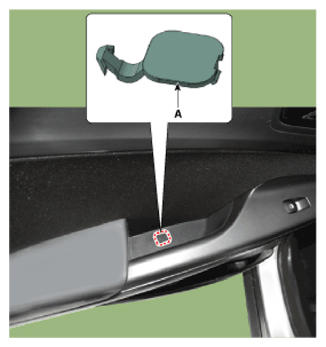

Using a flat-tip or remover, remove the rear door pull handle mounting cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

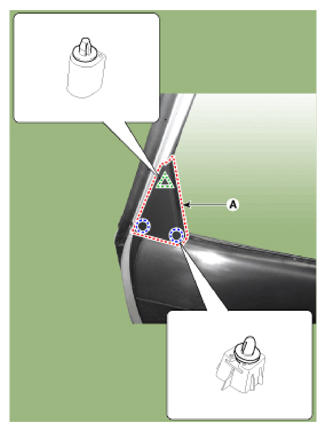

Using a screwdriver or remover, remove the rear door delta inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

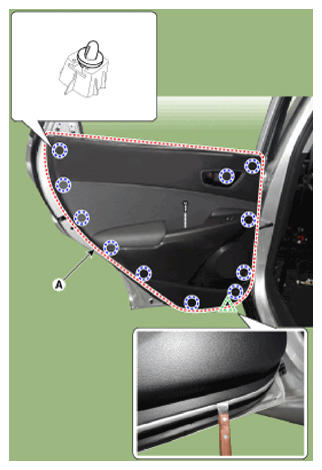

After loosening the mounting screws, remove the rear door trim (A).

Courtesy of HYUNDAI MOTOR AMERICA

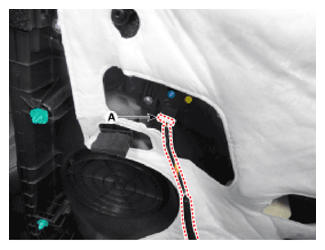

Remove the rear door inside handle cage (A).

Courtesy of HYUNDAI MOTOR AMERICA

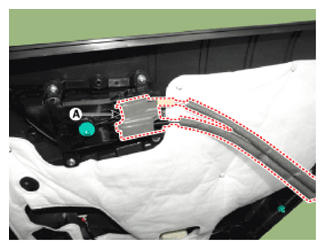

Disconnect the power window switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
- Make sure the glass moves properly.
