Rear Door Side Weatherstrip
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

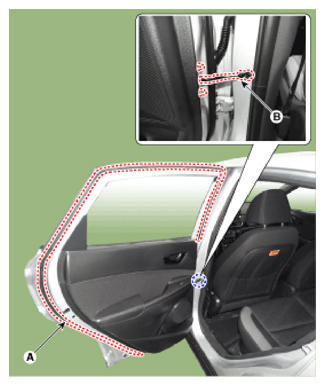

- Loosen the rear door checker (B) mounting bolt.
Tightening Torque:
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb-ft)
- Detach the clips, remove the rear door side weatherstrip (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- To install, reverse removal procedure.
Information
- Replace any damaged clips.
