Rear Door Body Side Weatherstrip

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

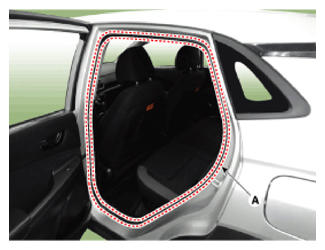

  1. Detach the clips, then remove the rear door body side weatherstrip (A).
    G12603011Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse the removal procedure.
