Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")

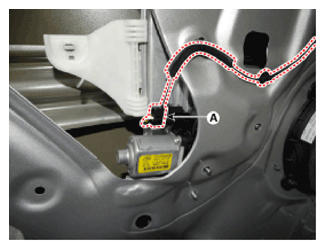

Disconnect the rear door power window motor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

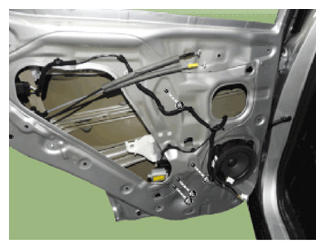

Loosen the rear door power window regulator mounting nuts.
Tightening torque

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

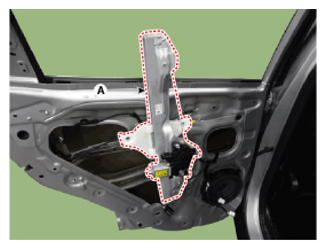

Remove the rear door power window regulator assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
