Repair Procedures: Replacement
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the plug hole.

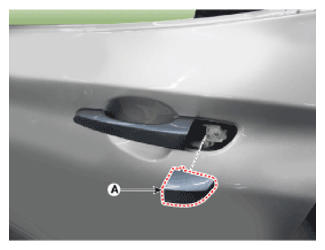

- After loosening the mounting bolt, remove the rear door outside handle cover (A).
Tightening Torque:
7.8 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

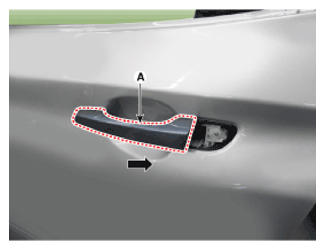

- Remove the rear door outside handle (A) by pushing it in the direction of arrow.
- To install, reverse removal procedure.
Information
- Make sure the door locks/unlocks and opens/closes properly.

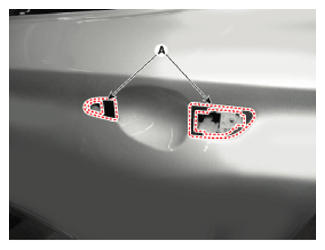

- Be sure to install the outside handle pad (A) between the outside handle and the door panel.
