Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door outside handle.
(Refer to Rear Door - "REAR DOOR OUTSIDE HANDLE ")

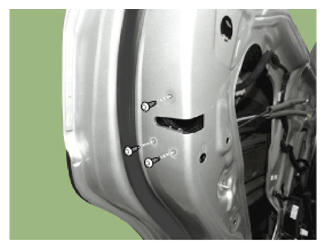

Loosen the rear door latch mounting screws.
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

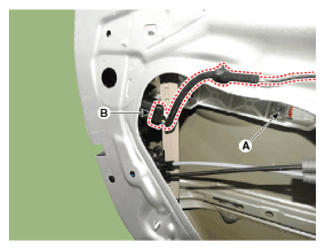

Loosen the rear outside handle base mounting screw (A) and connector (B).
Tightening Torque:

3.9 - 7.8 N.m (0.4 - 0.8 kgf.m, 2.9 - 5.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

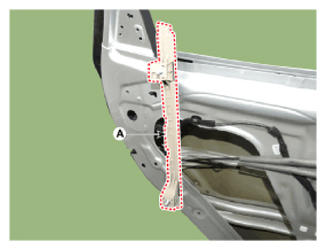

After loosening the mounting nuts, remove the rear door channel (A).
Tightening Torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

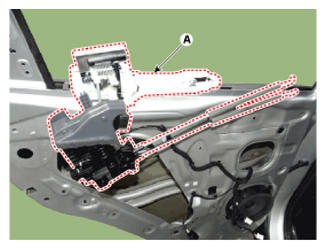

Remove the rear door latch (A).

Courtesy of HYUNDAI MOTOR AMERICA

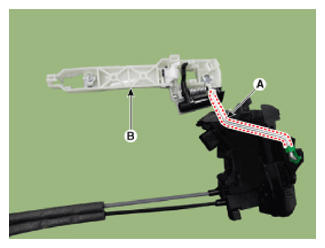

After loosening the rear door outside handle rod (A), remove the rear door outside handle base (B).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
