Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

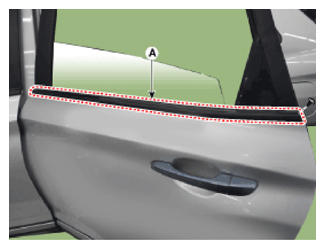

  2. After loosening the mounting screws, remove the rear door belt outside weather strip (A) by pulling it upward.
    G12603008Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.

    Information

    • Replace any damaged clips.
