Repair Procedures: Replacement
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear door trim.
(Refer to Rear Door - "REAR DOOR TRIM ")

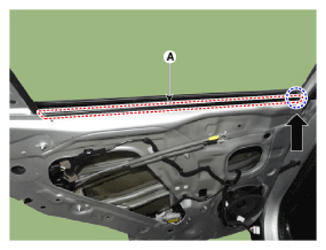

- Remove the rear door belt inside weatherstrip (A).
- To install, reverse removal procedure.
Information
- When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
- Replace any damaged clips.
