Rear Power Window Motor

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

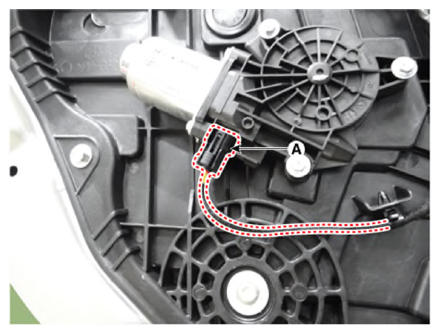

  3. Disconnect the rear power window motor connector (A).
    G13486934Courtesy of KIA MOTORS AMERICA, INC.

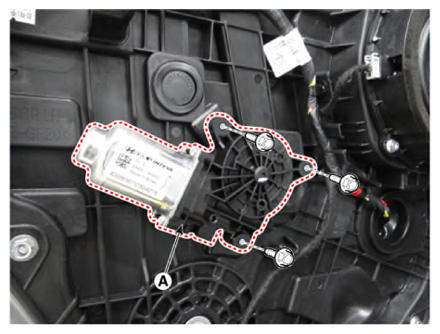

  4. Remove the rear power window motor (A) after loosening the mounting bolts.
    G13486935Courtesy of KIA MOTORS AMERICA, INC.
