Front Seat Heater Switch (Passenger)

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

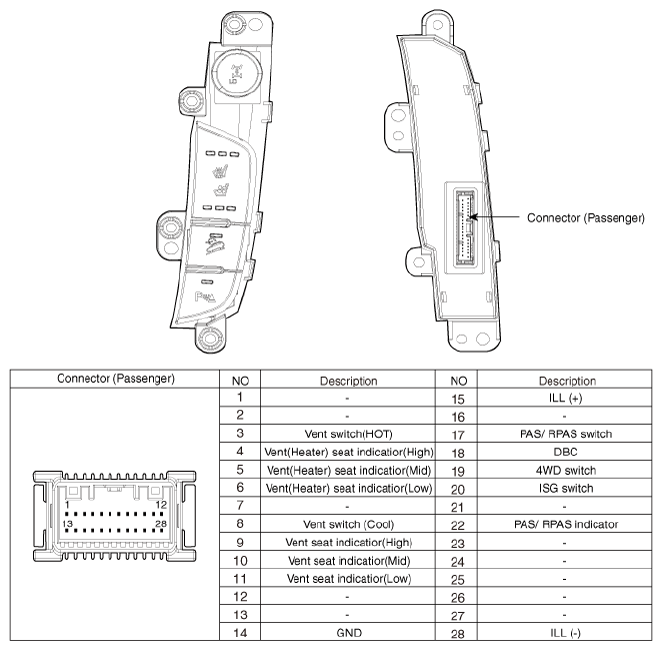

G12605603Courtesy of HYUNDAI MOTOR AMERICA

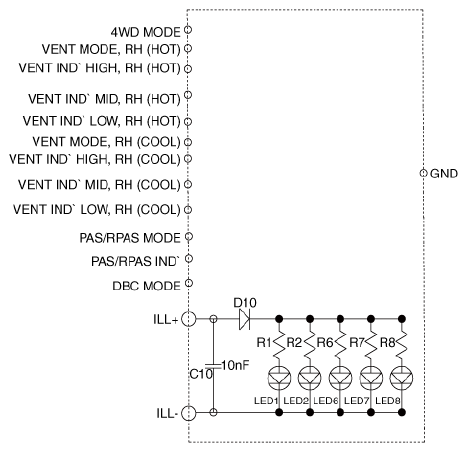

G12605604Courtesy of HYUNDAI MOTOR AMERICA
