Seat Control Switch

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
    G12605591Courtesy of HYUNDAI MOTOR AMERICA

    [Power Seat Control Switch]

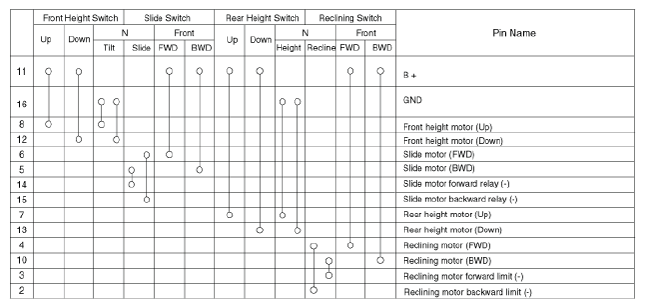

    G12605592Courtesy of HYUNDAI MOTOR AMERICA

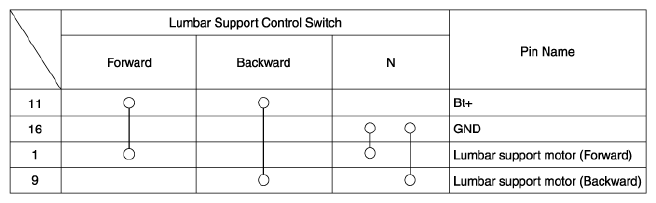

    G12605593Courtesy of HYUNDAI MOTOR AMERICA
