Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Remove the seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

  4. Disconnect the lumber support motor connector (A).
    G12605641Courtesy of HYUNDAI MOTOR AMERICA

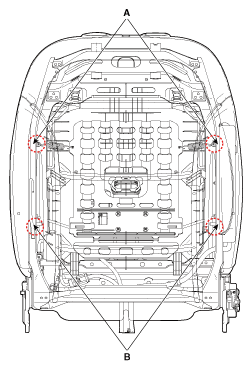

  5. Remove the lumber support assembly (C) after disconnect the seat back spring (A) and cable (B).
    G12605642Courtesy of HYUNDAI MOTOR AMERICA
    G12605643Courtesy of HYUNDAI MOTOR AMERICA
