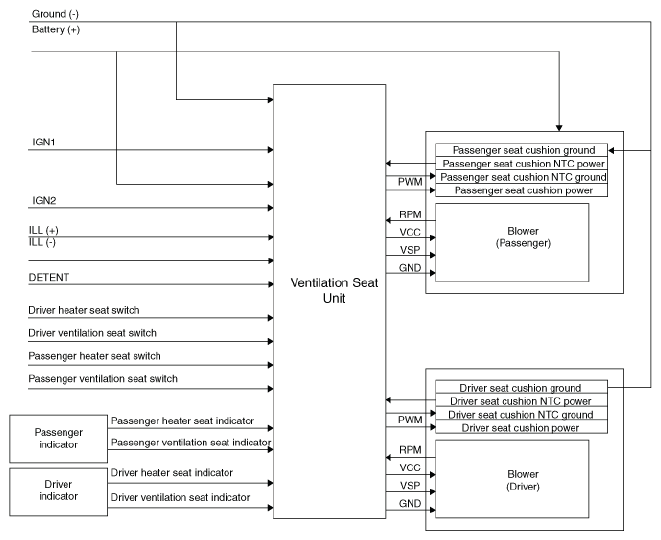

Circuit Diagram
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

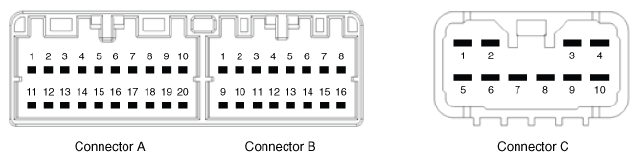

| N | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Ventilation seat unit IGN1 | Driver ventilation indicator (low) | Ventilation heater power |
| 2 | Driver blower power | Driver ventilation indicator (mid) | Driver heater power |
| 3 | Driver blower speed | Driver ventilation indicator (high) | Driver heater ground |
| 4 | Driver RPM input | Driver NTC (+) | Ventilation heater ground |
| 5 | Driver heater switch | - | Ventilation heater power |
| 6 | Driver ventilation switch | ILL (-) | - |
| 7 | ILL (+) | Driver NTC (-) | Passenger heater power |
| 8 | Driver heater indicator (low) | Driver blower ground | - |
| 9 | Driver heater indicator (mid) | Passenger ventilation indicator (low) | Passenger heater ground |
| 10 | Driver heater indicator (high) | Passenger ventilation indicator (mid) | Ventilation heater ground |
| 11 | Ventilation unit IGN2 | Passenger ventilation indicator (high) | |
| 12 | Passenger blower power | Passenger NTC (+) | |
| 13 | Passenger blower speed | - | |
| 14 | Passenger blower RPM input | - | |
| 15 | Passenger heater switch | Passenger NTC (-) | |
| 16 | Passenger ventilation switch | Passenger blower ground | |
| 17 | Detent | ||
| 18 | Passenger heater indicator (low) | ||
| 19 | Passenger heater indicator (mid) | ||
| 20 | Passenger heater indicator (high) |
