Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
- Disconnect the battery negative terminal.
- Remove the air clean hose.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Disconnect the engine wiring connector and harness clamp and then remove the connector bracket from engine.
- Disconnect the ignition coil.
(Refer to Engine Electrical System - "IGNITION COIL ")

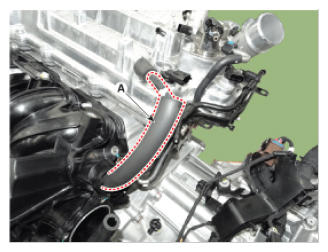

- Remove the Positive Crankcase Ventilation (PCV) hose (A).

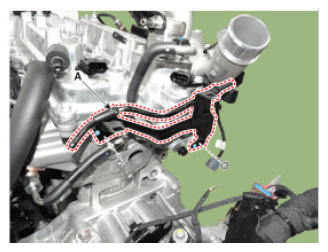

- Remove the vacuum pipe assembly (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Remove the high pressure fuel pump and high pressure fuel pipe.
(Refer to Fuel System - "HIGH PRESSURE FUEL PUMP ")
- Disconnect the exhaust Oil Control Valve (OCV) connector.
(Refer to Fuel System - "CVVT OIL CONTROL VALVE ")

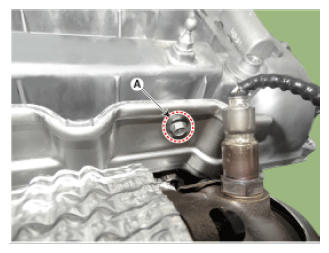

- Remove the cylinder head protector bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

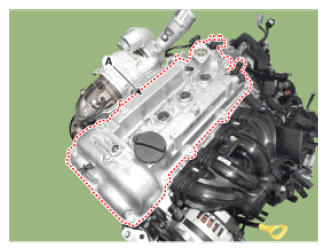

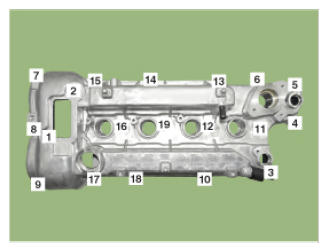

- Remove the cylinder head cover (A), gasket.
