Repair Procedures: Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Install the cylinder head cover.

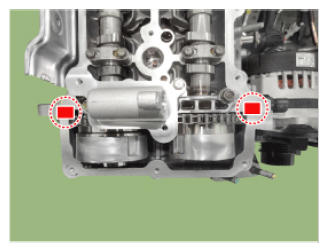

- The hardening sealant located on the upper area between timing chain cover and cylinder head should be removed before assembling cylinder head cover.
- After applying sealant, it should be assembled within 5 minutes.
Bead Width: 2.0 - 3.0 mm (0.07 - 0.11 in.)
Sealant: TB1217H or LOCTITE 5900H

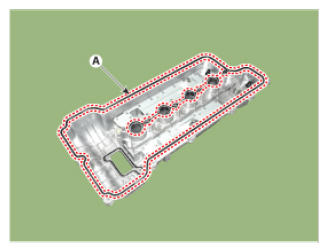

- Install the cylinder head cover new gasket (A).

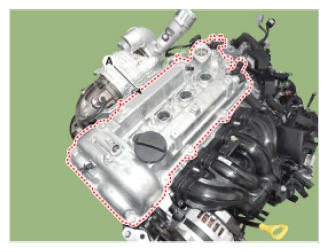

- Install the cylinder head cover (A).

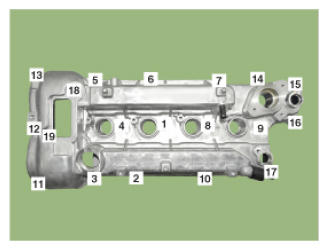

- Tighten the cylinder head cover bolts with the order and steps.
Tightening Torque
1st step:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
2nd step: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
CAUTION:- Do not reuse the disassembled gasket.
- Before mounting the cylinder head cover, confirm whether or not the gasket is detached from the cylinder head cover gasket groove.
- Do not operate the engine or pressurize the engine before 30 minutes after assembling the cylinder head cover.
- Install in the reverse order of removal.
